Tagra | 24V | 200W | Constant Voltage | TRIAC Dimmable LED Driver | IP20
ORION-D-200/24V
£104.04 Inc. VAT
Key Features
- Dimming Type: TRIAC
- Dimming Range: 20% - 90%
- CV / CC: Constant Voltage (CV)
- Input Voltage: 220V - 240V
- Output Voltage: 24V
- Max Amps per Channel: 8.3A
- IP Rating: 20
- Body Material: Plastic
- Product Dimensions (mm): L310xW60xH45
- Warranty: 3 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:

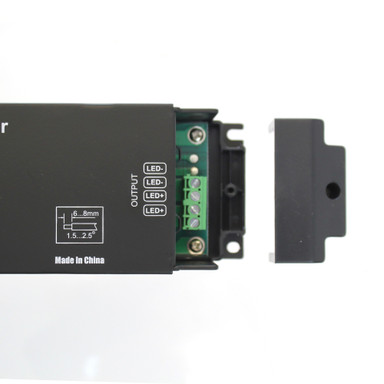

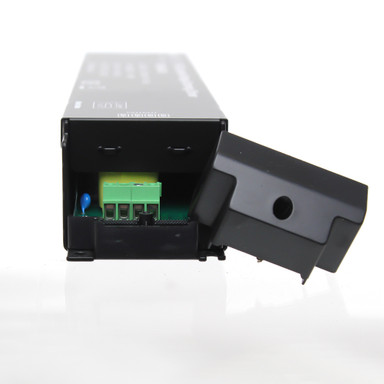

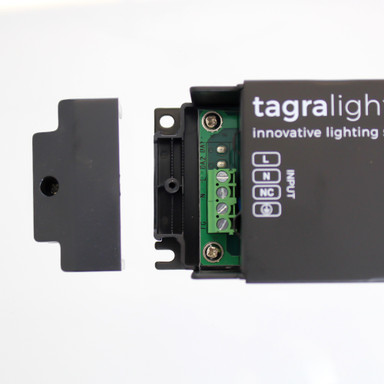

- Easy terminal access
- Rated 200w 8.3Amp Max
- Dimming range 40–240VAC
- Compatible with both leading edge and trailing edge dimmers
- Smooth flicker-free dimming
- Dimensions: L310mm x W60mm x H45mm
- Warranty: 3 years
The ORION-D-200/24V from Tagra is a dimmable power supply designed to power and dim 24v constant voltage LEDs via leading edge (TRIAC) or trailing edge (ELV). Combine with a mains dimmer module and this power supply will allow the user to have excellent control over light levels. We suggest VARILIGHT's range of V-COM dimmers for the best results. This driver is also compatible with the systems of many brands such as Philips, Panasonic, Lutron and Siemens.
We suggest loading the power supply as close to its maximum capacity for the most effective dimming.
See PDF Documents for more information
Note: This driver is intended to dim mains voltage single colour LED lights. If you are using a controller then you will not require a dimmable driver as the controller handles the low voltage dimming.
all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
Output | - |
Output Voltage | 24V |
Output Current | Up to 8.33 |
Rated Power | Up to 200 Watts |
Dimming Mode | TRIAC CV |
Input | - |
Input Voltage Range | 220 - 240 VAC |
Input Frequency | 50/60Hz |
Power Factor | >0.95 |
Inrush Current | 26.2A |
Environment | - |
Ingress Protection | IP20 |
Min. Operating Temperature | -20°C |
Max. Operating Temperature | 50°C |
Protection | - |
Overload Protection | - |
Short Circuit Protection | Yes |
Over Voltage Protection | Yes |
Guarantee | 3 Years |
Control Signal - Input | TRIAC |
Dimmable | Yes |
Dimming Type | TRIAC |
Power Factor (A) | 0.95 |
Application Environment | Indoor |
Body Material | Plastic |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | Interior |
Input Current Type (A) | AC |
Input Frequency Min. - Max. (Hz) | 50-60Hz |
Input Voltage Min. - Max (V) | 220-240V |
Body Colour | White |
Product Weight (g) | 842 |
Constant Voltage / Constant Current | CV |
Output Current Max. (A) | 8.33 |
Output Current Type | DC |
Output Voltage Min. - Max. (V) | 24-24V |
Battery Included | No |
Over Current Protection | No |
Over Temperature Protection | No |
Dimming Range Min. - Max (%) | 20-90% |
Operating Temperature Min. - Max. (°C) | -20℃ to 50℃ |
Brand | EU Chips |
Family Name | Orion Triac |
Wattage (W) | 200 |
Warranty (Years) | 3 |
Product Height (mm) | 45 |
Depth (mm) | 310 |
Width (mm) | 60 |
Dimensions LxWxH (mm) | 310x60x45 |
Max. Output Current Per Channel (A) | 8.3 |
