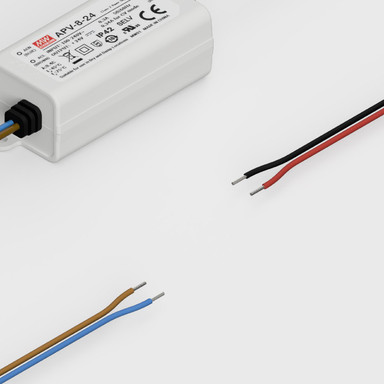

Mean Well | APV | 24V | 8W | Constant Voltage | Non-Dimmable LED Driver | IP42
APV-8-24
£8.40
£5.88 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input Voltage (Min/Max): 90 – 264 V
- Output Voltage: 24 V
- Max Output Current per Channel: 0.34 A
- IP Rating: 42
- Body Material: Plastic

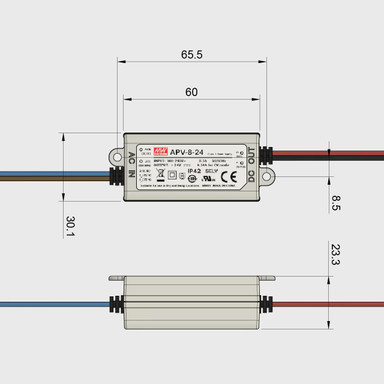

- Product Dimensions (mm): L60xW30xH24
- Warranty: 2.0 Years
- Bulk pricing: up to 47% off (discount varies by product)
| Quantity | Price |
|---|---|
| 5 - 9 | £5.71 (save £0.17) |
| 10 - 24 | £5.04 (save £0.84) |
| 25 + | £4.62 (save £1.26) |
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- 24V Constant Voltage
- IP42
- Non-Dimmable
- 2 Year warranty
- 8W Power Output
- 0.34 Amp Max
Additional Information:
- Short circuit protection
- Over voltage protection
- Overload protection
- Fully isolated plastic case
- Small and compact design
- Cooling by free air convection
The Mean Well APV-8-12 LED driver is a practical and efficient power supply designed for LED lighting applications and offers reliable performance for smaller LED applications such as cabinets, bookshelves and shop window displays.
It is a reliable and practical choice for powering LED lighting systems. Its efficiency, protection features, and compliance with industry standards make it suitable for a variety of applications.
Product Specification
| Warranty (Years) | 2 |
| Dimmable | No |
| Application Environment | Indoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 42 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | AC |
| Input Frequency Min. - Max. (Hz) | 47-63Hz |
| Input Voltage Min. - Max (V) | 90-264V |
| Body Colour | White |
| Product Weight (g) | 53 |
| Constant Voltage / Constant Current | CV |
| Max. Output Current Per Channel (A) | 0.34 |
| Output Current Max. (A) | 0.34 |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 24-24V |
| Battery Included | No |
| Electrical Safety Class | II |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Operating Temperature Min. - Max. (°C) | -30℃ to 70℃ |
| Brand | Mean Well |
| Family Name | APV |
| Wattage (W) | 8 |
| Depth (mm) | 60 |
| Product Height (mm) | 24 |
| Width (mm) | 30 |
| Dimensions LxWxH (mm) | 60x30x24 |
| Dimming Type | Non-Dimmable |
