Syndeo by Tagra | 24V | 60W | Plug & Play LED Driver | IP20

Product Features:

• Multi port design for multiple LED lighting attachments.
• Central control port with the capability of controlling an entire lighting system with the touch of a button
• Slimline, Lightweight Design
• Wiresafe short circuit protection technology
• Colour coded voltage system
• Unrivalled 5 year guarantee

Technical Specifiations:

• Wattage: 60W
• Voltage: 24V
• Number of Connection Ports: 6
• Driver Power Cable Length: 1.5 Metres
• Maximum Total Output Current: 2.5A
• Maximum Output Current per Port: 2.75A
• IP Rating: IP20
• Operating Temperature: -15ºC to +45ºC

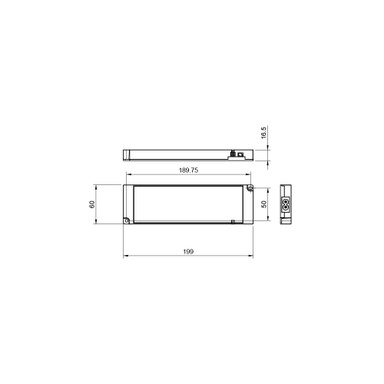

• Dimensions (LxWxH): 199 x 60 x 16.5 mm
• Weight: 0.25kg
• Certification: CCC/TUV-CE/CB
• Safety Standards: EN5022/EN55015:2013/A1:2015
• Certification: RoHS, CE

FEATURING THE NEW STANDARD FOR PLUG & PLAY DRIVERS

Introducing the revolutionary second generation of Syndeo multi port plug and play drivers. Integrating innovative slim design with professional level safety.

This generation of Syndeo drivers also features revolutionary Wiresafe Technology, which is and active current monitoring system designed to protect all ports from overloading, short circuits and electrical surges, ensuring lighting systems stay as safe as possible. This integration helps to assist BS7671 Regulation.

The new Syndeo connectors on the components are also designed to only fit into the respective ports making it impossible to connect a 24V tape into a 12V driver, further enhancing safety.

Offering this balance of maximum safety and simplicity means less need for electrical qualifications on installation, saving you time and money on your next lighting project.

This Syndeo driver has 6 connection ports and can power up to 60 watts worth of LED Lights in one 24 Volt lighting system. Comes with a 1.5 metre long UK plug as standard, EU plugs available on request.

All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
