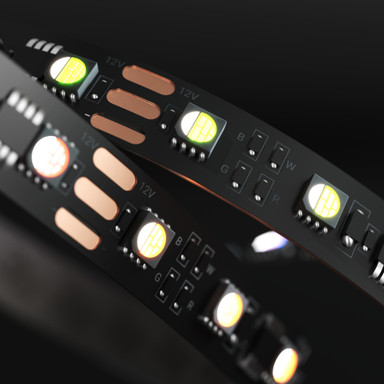

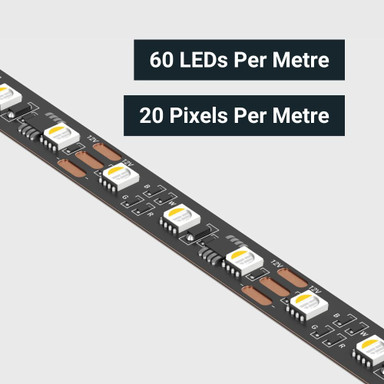

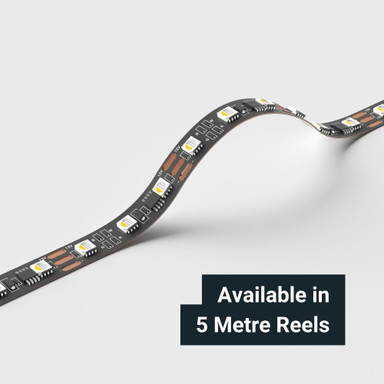

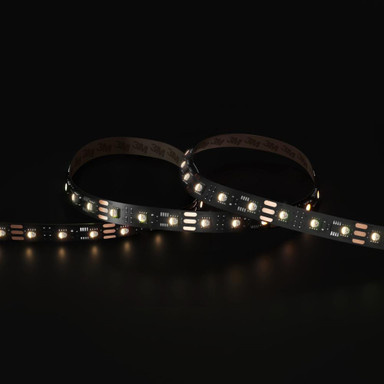

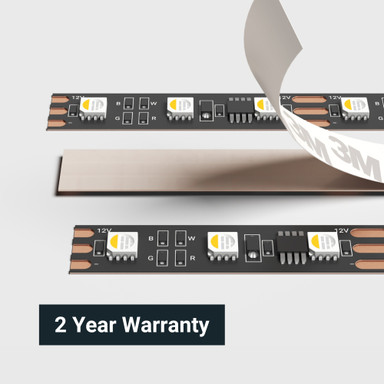

Toning Digital Pixel LED Strip Light 19.2W p/m, 12V, RGB+3000K, 60LEDs, 20 Pixel/m, 5 Metre Reel

ID: TD12-RGB3K-60-5M

  • RGB+3000K Pixel Chasing
  • 12V
  • 19.2W/m

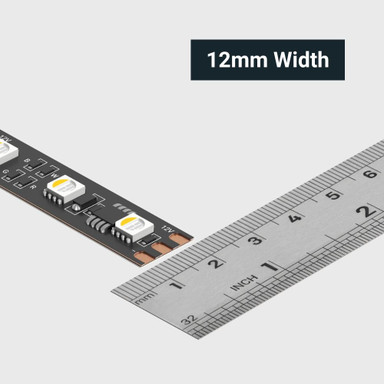

  • 12mm Tape Width

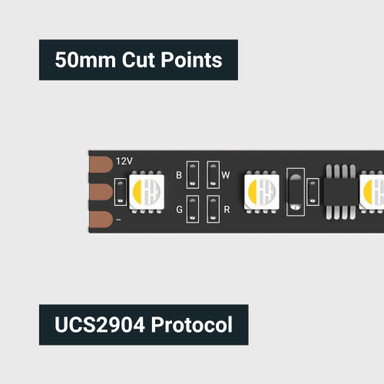

  • 50mm Cut Points
  • IC UCS2904 Protocol
  • 2 Year Warranty
£142.38 inc. VAT

Toning Digital Pixel LED Strip Light 19.2W p/m, 12V, RGB+3000K, 60LEDs, 20 Pixel/m, 5 Metre Reel

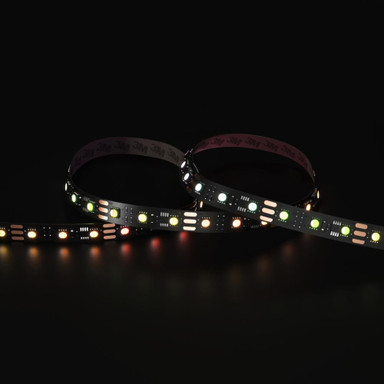

RGBW addressable LED Pixel tape designed to create versatile and dynamic lighting displays. Full colour mixing can be achieved with added white intensity, deepening the capabilities of moods that can be created.


The possibilities are endless when using this digital canvas to set the look and mood. Chase, pulse and animate however desired to make your vision come to life.

Each individual pixel can achieve billions of colour combinations. Up to 4,294,967,296 in fact, meaning the versatility of this tape is market leading and unrivalled in its field.

This Toning Digital Pixel LED tape utilises the UCS2904 IC Protocol, meaning it has a high PWM (Pulse Width Modulation) rate of 1800Hz and data transfer rate of up to 800kpbs. One of the advantages of the PWM rate is smooth animations and being able to film the tape at up to 60FPS and not see any visible flicker.

Our LED Pixel tapes have been designed to surpass industry benchmarks. We ensure that our products use high quality materials and have a thicker copper than other LED pixel tapes on the market. Manufactured to the highest standards, our tapes are quality checked and assessed to ensure optimal compatibility with our range of pixel controllers.

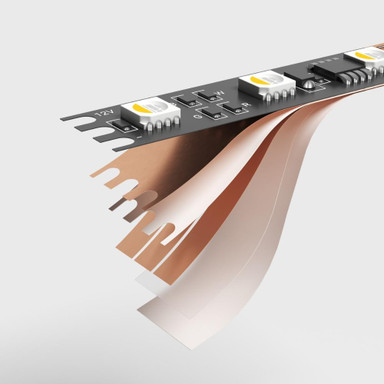

Thicker copper tracks offer more durability, better heat dissipation and improved current flow, all of which are vital factors towards achieving the best possible product. Heat dissipation is a critical safety issue when it comes to high density tapes, so we pay serious attention to the amount of copper we use on our tapes. Inferior PCB tapes commonly have a copper thickness of around one or two ounces, whereas we require our LED Pixel tape to have a 4oz copper.
