Tagra | 12V | 30W | Constant Voltage | 0-10V Dimming Driver Controller + LED Driver | IP20
B-010VCVTR-12V30W
£36.30 Inc. VAT
Key Features
- Dimming Type: 0-10
- Dimming Range: 0%-100%
- Input Voltage: 200V-240V
- Output Voltage: 12V
- Max Amps per Channel: 5A
- IP Rating: 20
- Body Material: Plastic
- Warranty: 5 Years
DATA SHEET - PSCONN-110VPUSHDIMPDF Download
DATA SHEET - TAG12V30WBPDF Download
Total
£36.30 Inc. VAT
Add to list
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview

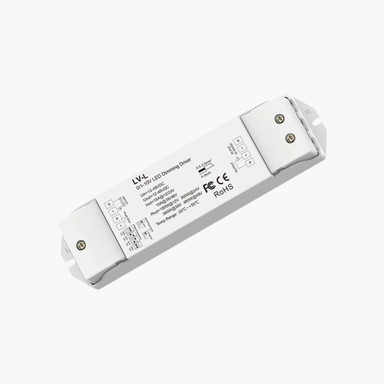

Controller Specifications:
- Voltage: 12-48VDC
- Max. Power: 180W @ 12V
- Max. Current: 15A @ 12/24V
- PWN Frequency: 500Hz, 2kHz, 8kHz, 16kHz
- Colour Control: Single Colour
Driver Specifications:
- Voltage: 12VDC
- Input Power: 200-240VAC
- Max. Power Output: 30W
- Max. Current: 2.5A
- Frequency: 50/60Hz
- Water Resistance: IP20
Product Specification
| Warranty (Years) | 5 |
| Control Signal - Input | 0-10 |
| Dimmable | Yes |
| Dimming Type | 0-10 |
| Power Factor (A) | 0.95 |
| Application Environment | Indoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | DC |
| Input Frequency Min. - Max. (Hz) | 50-60Hz |
| Input Voltage Min. - Max (V) | 200-240V |
| Body Colour | White |
| Product Weight (g) | 0 |
| Constant Voltage / Constant Current | CV |
| Max. Output Current Per Channel (A) | 5 |
| Output Current Max. (A) | 6.25 |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 12-12V |
| Battery Included | No |
| Electrical Safety Class | II |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Brand | Tagra |
| Family Name | 0/1-10V |
| Wattage (W) | 30 |
Technical Documents
DATA SHEET - PSCONN-110VPUSHDIMPDF Download
DATA SHEET - TAG12V30WBPDF Download
