Tagra | SXL23 | 120 Degree Angled | LED Profile Connector | White
2325-120DEG-CONN/WHT
Key Features
- Items/sets per pack: 1
- Max strip width: 21 mm
- Body colour: White
- Body material: Aluminium
- Warranty: 1 Year
Product Overview
This connector is used to create a 120 degree angled connecton between two equal lengths of LED profile and can ultimately be used to create a hexagon shape, with additional parts, totalling six connectors and six equal lengths of 23x25mm profile.
This connector is durable and made from anodised aluminium to protect against corrosion, as is the LED profile it is compatible with.
Included in the pack is a connector, two connector brackets and two clear PC (polycarbonate) connectors to create a secure connection between the profile and connector bracket.
Installation:

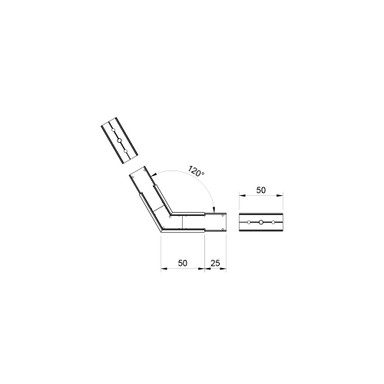

Easily join two equal lengths of 23x25mm profile together with this angled connector, precisely at a 120° angle. Must be used with 23x25mm Aluminium LED Profile. Diffuser not included. To achieve a hexagon shape use 6x 120 Degree Angled Connectors.
Required Products:
23x25mm Aluminium LED Profile
Product Specification
| Ingress Protection (IP) | 20 |
| Body Colour | White |
| Product Weight (g) | 37 |
| Battery Included | No |
| Items/Sets Per Pack | 1 |
| Brand | Tagra |
| Family Name | 2325 |
| Depth (mm) | 87 |
| Product Height (mm) | 26 |
| Width (mm) | 48 |
| Dimensions LxWxH (mm) | 87x48x26 |
| Warranty (Years) | 1 |
| Body Material | Aluminium |
| Max. Strip Width (mm) | 21 |
