Products Tested In-House
Syndeo by Tagra | LED Strip Light | 60 LEDs p/m | 12V | IP20 | 4.8W p/m | 5M Reel
PPS12-60-5M-80
From £19.20 Inc. VAT
Key Features
- Product width (mm): 8
- Lm/m (up to): 628.8 Lm/m
- Lm/W (up to): 131 Lm/W
- CRI: 80+
- Lightsource SDCM: ≤5
- Run length (max): 5 m
- Available colours: 2700K, 3000K, 4000K, 6000K
- Warranty: 3 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview

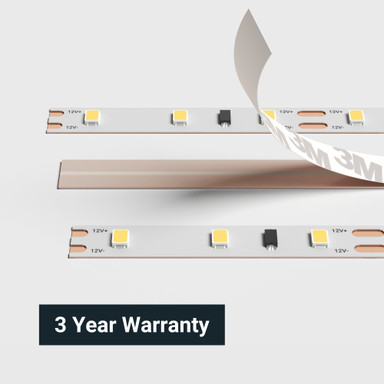

The Syndeo 5 metre reels of LED Tape come with two 500mm Orange 12V Syndeo Plug and Play Cables and two 10mm wide solderless tape to wire connectors, as well as a 3M self-adhesive backing on the tape, which makes fixing into channel quick and hassle free.
The width of the connectors mean these tapes, when used with the connectors, are suitable for channels with an internal width of 10mm or more. Due to the use of a 10mm connecter however, these tapes aren't compatibe with the 1207 aluminium channels.
There is no complicated soldering or wiring involved, simply connect the cable using the provided solderless tape to wire adapter, plug in to a Syndeo Plug and Play Driver and go.
The Video below demonstrates how the solderless connectors connect the LED Tape, how the connectors fit into LED channel and how the cables plug into to the provided Syndeo Plug and Play cabling.
This robust yet easy to install tape can be cut to length at any of the allocated cut points and can be extended if required. The provided cables and connection adapters ensure you can use two runs from one 5 metre reel with a compatible Syndeo multiport driver, minimising waste.
If there is a requirement for the strip tape to be cut into several sections we offer additional Syndeo plug & play cabling and connection adapters.
Maximum runs of up to 5 linear metres can be achieved with this tape before visible voltage drops occur.
Syndeo plug and Play LED Strips use a more efficient 2835 chip, producing more lumens per watt and therfore requiring less power to achieve a brighter finish.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Videos
Product Specification
| Colour | 2700K, 3000K, 4000K, 6000K |
| Voltage | 12V |
| Amps per Metre | 0.37 Amps p/m |
| Watts Per Metre | 4.8 Watts p/m |

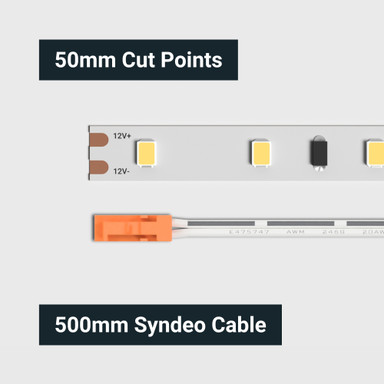

| Cut Points | Every 50mm |
| CRI | 80 |
| SDCM | 5 |
| Lumens Per Metre | 2700K - 560lm | 3000K - 630lm | 4000K - 580lm | 6000K - 570lmlm/m |
| Lumens Per Watt | 2700K - 117lm | 3000K - 131lm | 4000K - 121lm | 6000K - 119lm lm/w |

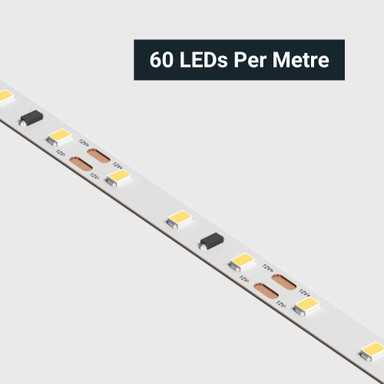

| LEDs Per Metre | 60LEDs p/m |

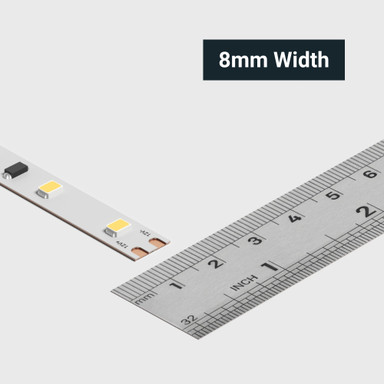

| Tape Width | 8mm |
| Water Resistance | IP20 |
| Min Operating Temperature | -25°C |
| Max. Operating Temperature | 40°C |
| Energy Rating | F |
| Guarantee | 3 Years |
| Warranty (Years) | 3 |
| Dimmable | Yes |
| Energy Efficiency Class | F |
| Application Environment | Indoor |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 12-12V |
| Cable Length (m) | 500 |
| Cut Points (mm) | 50 |
| LEDs Per Metre (LEDs/m) | 60 |
| Product Height (mm) | 2 |
| Depth (mm) | 5000 |
| Width (mm) | 8 |
| Output Current Type | DC |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Brand | Tagra |
| Bend Direction | Vertical |
| Family Name | Syndeo Strip Light |
| Cable Length (mm) | 500 |
| Product Weight (g) | 58 |
| Battery Included | No |
