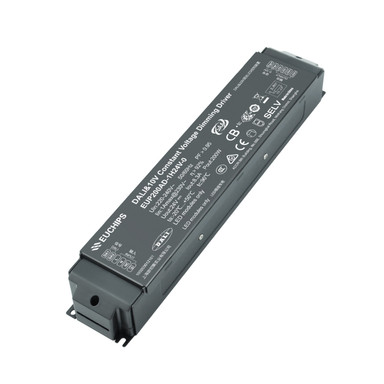

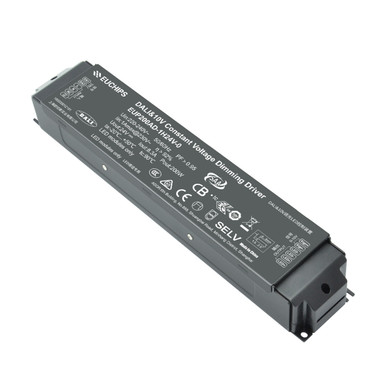

EU Chips | 24V | 200W | Constant Voltage | DALI Dimmable LED Driver | IP20
ORION-DALI-200/24V
£108.00 Inc. VAT
Key Features
- Dimming Type: DALI
- Dimming Range: 0.1% - 100%
- CV / CC: Constant Voltage (CV)
- Input Voltage: 240V
- Output Voltage: 24V
- Max Amps per Channel: 8.3A
- IP Rating: 20
- Body Material: Metal
- Product Dimensions (mm): L310xW60xH45
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- Easy terminal access
- Rated 200w - 8.3Amp Max

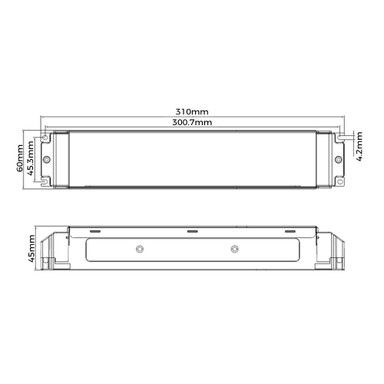

- Dimensions: 310mm × 60mm × 45mm (L×W×H)
- Dimming modes : DALI/Touch DIM/1-10V/ Adjustable resistance /PWM
Our range of DALI constant voltage LED drivers comply with the DALI standard protocol IEC 62386, and as well as a built in 0-10v dimming function this DALI driver provides additional multiple dimming functions, DALI, 1-10V active signal, PWM, adjustable resistance, and Touch DIM to achieve a smooth dimming effect.
DALI (Digital Addressable Lighting Interface) is an International Standard for the control of electronic ballasts, transformers, LED's, emergency lights and exit signs in an easy to manage digital lighting control system.
Ideal for large projects, DALI is all in one solution for controlling low voltage lighting.
all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Output | - |
| Output Voltage | 24V |
| Output Current | Up to 8.33 |
| Rated Power | Up to 200 Watts |
| Dimming Mode | Non Dimmable |
| Input | - |
| Input Voltage Range | 220 - 240 VAC |
| Input Frequency | - |
| Power Factor | >0.95 |
| Inrush Current | - |
| Environment | - |
| Ingress Protection | IP20 |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 50°C |
| Protection | - |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Voltage Protection | Yes |
| Guarantee | 5 Years |
| Control Signal - Input | DALI |
| Dimmable | Yes |
| Dimming Type | DALI |
| Power Factor (A) | 0.95 |
| Application Environment | Indoor |
| Body Material | Metal |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | AC |
| Input Voltage Min. - Max (V) | 240-240V |
| Body Colour | Black |
| Product Weight (g) | 860 |
| Constant Voltage / Constant Current | CV |
| Output Current Max. (A) | 8.33 |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 24-24V |
| Battery Included | No |
| Over Current Protection | Yes |
| Over Temperature Protection | No |
| Dimming Range Min. - Max (%) | 0.1-100% |
| Operating Temperature Min. - Max. (°C) | -20℃ to 50℃ |
| Brand | EU Chips |
| Family Name | Orion Dali |
| Wattage (W) | 200 |
| Warranty (Years) | 5 |
| Product Height (mm) | 45 |
| Depth (mm) | 310 |
| Width (mm) | 60 |
| Dimensions LxWxH (mm) | 310x60x45 |
| Max. Output Current Per Channel (A) | 8.3 |
