Tagra | Professional LED Strip Light | 140 LEDs p/m | 24V | IP20 | 19.2Wp/m | CCT | 5 & 50M Reel
TP24-276K-140-90
£71.70
From £50.20 Inc. VAT
Key Features
- Product Width: 10 mm
- Lm/m (up to): 1575
- Lm/W (up to): 82
- CRI: 90+
- Lightsource SDCM: ≤2
- Run Length (Max): 5 m
- Available Colours: 2700K - 6000K
- Warranty: 7 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview

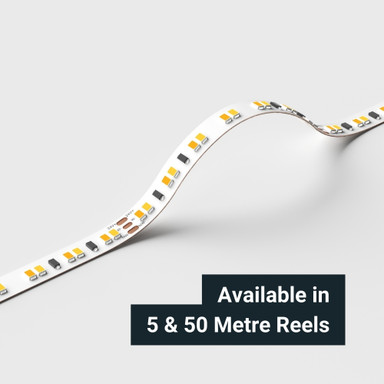

Professional CCT colour toning for high quality output, long lasting and reliable installations in commercial and domestic environments. Available in 5 metres and 50 metres reels.

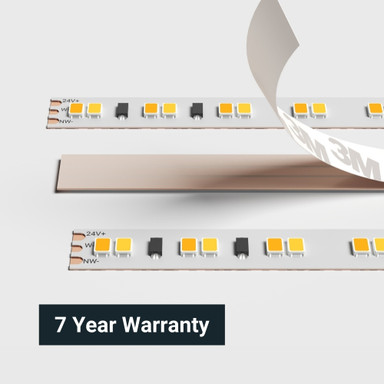

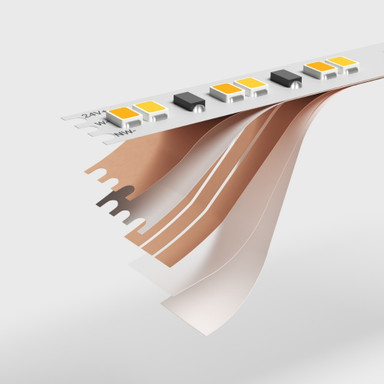

Tunable through two dedicated White chips to give a CCT range from 2700K to 6000K at a high quality >90 CRI output. Our professional range of LED strip lights is designed to provide you with the highest standard LED lighting solution and robust and reliable lighting solution for professional installations in both commercial and domestic settings by featuring a superior 3M adhesive backing and thick 3oz copper PCB.
Complete with a pre attached 500mm 3 core cable at each end of the tape, 3M backing for easy fixing into LED channel and a 7 year quality reassurance warranty
Maximum runs of up to 5 linear metres can be achieved with this tape before visible voltage drops occur.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Colour | 6000K Cool White |
| Voltage | 24V |
| Amps per Metre | 0.8 Amps p/m |
| Watts Per Metre | 19.2 Watts p/m |
| Cut Points | Every 83.3mm |
| CRI | 90 |
| Lumens Per Metre | 750 (2700K) to 825 (6000K)lm/m |
| Lumens Per Watt | N/A lm/w |

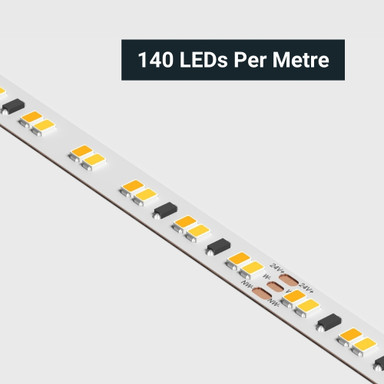

| LEDs Per Metre | 140 LEDs p/m |

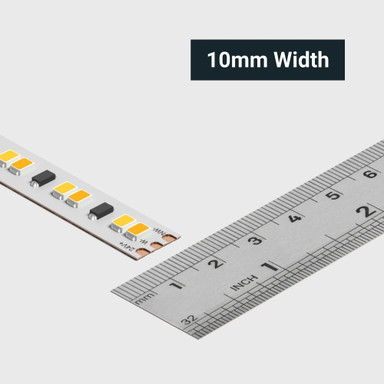

| Tape Width | 10mm |
| Water Resistance | IP20 |
| Min Operating Temperature | -25°C |
| Max. Operating Temperature | 40°C |
| Energy Rating | F |
| Warranty | 7 Years |
| Warranty (Years) | 7 |
| Dimmable | Yes |
| Energy Efficiency Class | F |
| Max. Run Length (m) | 5 |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | INTERIOR |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Length (m) | 500 |
| Cut Points (mm) | 100 |
| LEDs Per Metre (LEDs/m) | 140 |
| Product Height (mm) | 2 |
| Depth (mm) | 5000 |
| Width (mm) | 10 |
| Beam Angle (°) | 120 |
| Total Lumens (Lm) | 7875 |
| Lumens Per Watt (Lm/W) | 82 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Dimensions LxWxH (mm) | 5000x10x2 |
| Brand | Tagra |
| Body Colour | White |
| Family Name | Professional |
| Bend Direction | Vertical |
| Lumens Per Metre (Lm/m) | 1575 |
| CCT Max. (Kelvin) | 6000 |
| CCT Min. (Kelvin) | 2700 |
| Colour Temperature Min. - Max. (Kelvin) | 2700-6000K |
| Bin Number | 1 |
| SDCM | 2 |
| Cable Length (mm) | 500 |
