Advatek | A4-S | Pixel Controller
PIXA4S3
£644.75 Inc. VAT
Key Features
- Gamma Correction
- Extremely Fast Refresh Rates
- Dithering
- Auto Synchronisation
- Dual Gigabit Ethernet
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Features:
- Connect up to 1020 RGB powered pixels per output.
- Supports up to 24 universes of Art-Net or sACN (E1.31) to drive powered pixel LEDs.
- Electrical fault protection on all ports protects the controller against electrical faults - resulting in higher reliability and fewer equipment failures.
- Gamma correction and high-speed refresh rates create an even better lighting display.
- Supports a vast range of pixel protocols and advanced configuration options.
- Management Interface specifically designed for PixLite® Mk3 devices now allows configuration via any modern web browser - so you can login from anywhere!
- Enjoy total peace of mind with a new industry leading 5-year product warranty.
- Advatek products are proudly made in Australia for ultimate manufacturing quality control.
Powerful operational functionality and advanced management platforms drive up to 6 universes of data - or up to 1020 RGB powered pixels – on each of its 4 outputs.
Truly a class leader, these features provide incredible, scalable value for your lighting project. Put simply, compared to similar products in its class – you need fewer Advatek controllers to control the same number of pixels, producing a low cost per pixel output, an unrivalled cost per universe, and the highest value per controllable pixel.
With sleek, compact design, easy mounting options and electrical fault protection on all inputs and outputs, it’s ideally suited to commercial and industrial applications.
A DIN Rail mounting option is also available click here to view
With high output capacity, comprehensive feature set, intuitive management software and product warranty, the PixLite® A4-S Mk3 is the best choice for your pixel lighting application.
Product Specification
Warranty (Years) | 5 |
Body Material | PLASTIC |
Ingress Protection (IP) | 20 |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 5-24V |
Body Colour | Black |
Product Weight (g) | 520 |
SD Card Slot | No |
Battery Included | No |
Items/Sets Per Pack | 1 |
Brand | Advatek |
Depth (mm) | 160 |
Product Height (mm) | 68 |
Width (mm) | 150 |

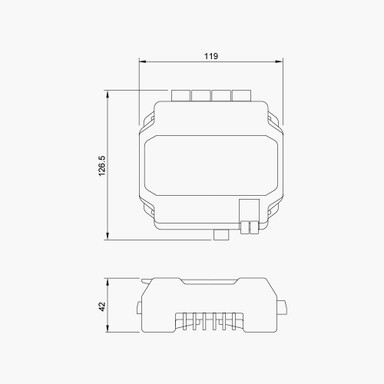

Dimensions LxWxH (mm) | 160x150x68 |
Max. Output Current Per Channel (A) | 7 |
Number of Control Channels | 4 |
Family Name | ADVATEK |
Technical Documents
