Tagra | T20IP | Surface Mounted | Small | Tubular | 20.1 x 21.6mm | LED Profile | IP65 | 2 & 3 Metre

Specifications:

• Dimensions: Diameter 20.5
• Max Tape Width: 12mm
• Diffusion: Semi-Clear



Applications:

• Bathroom Lighting: The water-resistant feature can be particularly useful for ambient lighting around tubs or sinks.
• Marine and Poolside Applications: Being water-resistant, they can be used around pools, docks, or boats.
• Industrial Lighting: In factories or workshops, the 360-degree lighting can be beneficial for uniform illumination, especially in areas where dust or water exposure might be an issue.
• Architectural Lighting: The circular design can be used for decorative purposes in commercial and residential buildings, highlighting features like columns or beams.
• Landscape Lighting: Illuminate pathways, gardens, or outdoor seating areas with a uniform light spread.



Additional information:

• End caps and mounting accessories sold separately

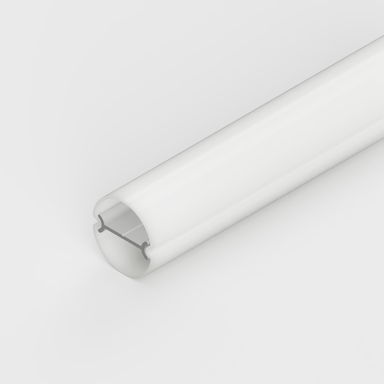

The Circular 360 Degree Water Resistant IP65 Profile with a diameter of 20.5mm is a specialized housing designed for LED strip lights. Its cylindrical shape allows for 360-degree light emission, and the IP65 rating ensures it's dust-tight and can withstand low-pressure water jets from any direction.



We recommend using LED tape with no more that 14.4 watts per meter due to the compromised heat sync. It is possible to run two 14.4w strips back-to-back.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The included semi clear diffuser means 70-75% of the brightness of the installed LED strip light will shine through.



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor and outdoor environments.

This profile is made from PC and fully anodized aluminium and is corrosion proof; The IP65 rating means it's dust-tight and can withstand low-pressure water jets from any direction, making it suitable for damp or wet environments.
