Appline | Connectable Linear Luminaire | CCT Switchable | DALI | 600-1800mm
CL-240
From £44.42 Inc. VAT
Key Features
- Input voltage (max): 240V
 - Mounting type: Suspended or Surface Mounted
 - Body colour: Black, White
 - Ingress protection (IP): 20
 - Warranty: 5 Years

Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
 - Next Day DeliveryFrom £8.95
 - Returns14 Day Policy

Product Overview
Specifications:
- Voltage: 220–240V
 - Max. Power: Up to 600W

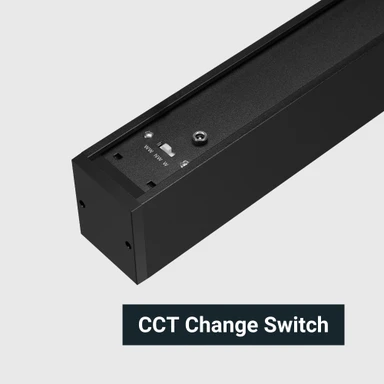

 - Colour Temperature: 3000K, 4000K, 5000K (CCT Switchable)

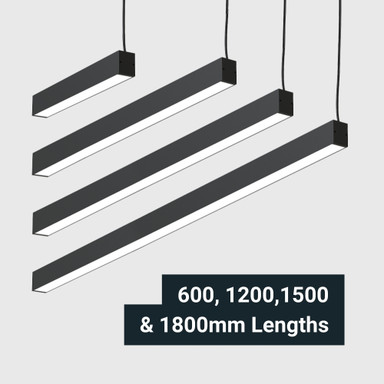

 - Lengths: 560mm, 1120mm, 1400mm, 1821mm
 - Size: W58mm x H72mm
 - Water Resistance: IP20
 - Cable Length: 1500mm
 - CRI: >80
 - Body Colour: Black
 - Diffuser Options: Opal
 - Mounting Options: Suspended, Surface Mounted, Wall Mounted
 - Warranty: 5 Years + optional 1 Year On-Site

Information:
This advanced modular lighting system is engineered for maximum versatility, efficiency, and aesthetic flexibility. Designed to cater to a broad range of commercial and architectural lighting needs, it offers a host of practical features, including CCT switch ability and a high output capacity of up to 600W from a single power source.
The product is available in a black finish in lengths of 560mm, 1120mm, 1400mm & 1821mm. A wide selection of diffuser options including opal, louvre, prismatic, and blank, alongside anti-glare optics (UGR >19) to suit both ambient and task lighting applications.
Installation:
Available in IP20 making it suitable for indoor installation. The system supports multiple installation methods including suspended, surface-mounted, and wall-mounted configurations (mounting accessories sold separately). Supplied with a 1500mm power cable.

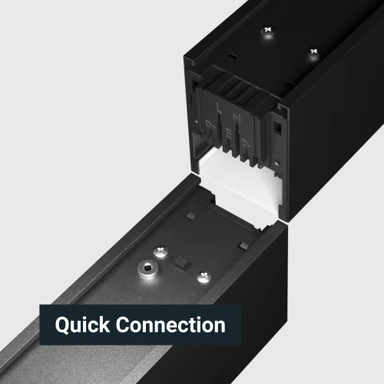

Tool-free quick connect and modular system connectivity make installation straightforward, allowing for rapid deployment and future reconfiguration without professional tools.

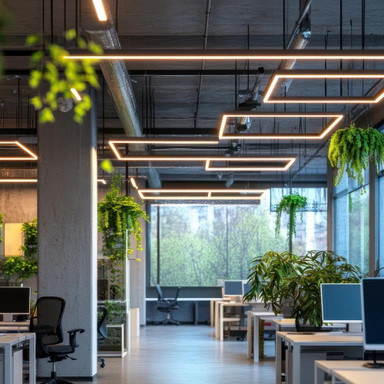

The system also features a range of connectors that allow you to achieve a multitude of shapes including rectangles, square or abstract configurations:
90° Corner Connector | TEE Connector | X Connector
Required Products:
Below are required to properly operate this product:
- 220–240V AC Power Supply

Additional Products:
- Up Light Module, Various Lengths
 - Roll On Opal Diffuser, 20 Metres
 - Mounting Accessories
 - Blank End Cap
 - DALI End Cap, 0.75mm² Cable

Please Note:
Professional installation is recommended.
For the addition of 1 Year On-Site Warranty please contact our customer service team at [email protected]
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Dimming Type | DALI, pushDIM |
| IC Type | Dual-stage circuit design |
| Power Factor (A) | 0.98 |
| Anti-Glare | Yes |
| Application Environment | Indoor |
| Body Finish | Aluminium |
| Body Material | Aluminium |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Mounting Type | Suspended, Surface Mounted |
| Input Cable Length (mm) | 1500 |
| Input Current Type (A) | AC |
| Input Voltage Min. - Max (V) | 220-240V |
| Body Colour | Black or White |
| LED Module Replaceable | true |
| Product Height (mm) | 72 |
| Product Weight (g) | 1060 |
| Width (mm) | 58 |
| Suspension Kit Included | Yes |
| Constant Voltage / Constant Current | CC |
| Fixings Included | No |
| CRI | 80 |
| Total Lumens (Lm) | 1890 |
| Lumens Per Watt (Lm/W) | 105 |
| SDCM | 5 |
| Electrical Safety Class | I |
| Over Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Dimming Range Min. - Max (%) | 1-100% |
| Brand | VEVO |
| Certification | EMC - 2014/30/EU |
| Wattage (W) | 18 |
| Family Name | Appline |
| Beam Angle (°) | 120 |
