Ntube by Tagra | LED Tube Luminaire | 350° | 25mm | 24V | IP20 | 6000K | Custom

Technical Specifications (Per 1000mm Tube Length):

• Voltage: 24V
• Watts: 14W
• Colour: 6000K Cool White
• IP Rating: IP20
• Lumens: 1330lm
• Lumens p/w: 95lm/1W
• Operating Temperature: -40ºC ~ +40ºC
• Average Lifespan: Up to 25,000 hours
• Certification: CE-EMC CE-LVD ROHS
• Guarantee: 3 years



Our custom length White LED Neon Tubes are a perfect for adding a decorative light source to your commercial space.

Available in any length up to 2 metres, simply choose your length range from the drop down, input your exact measurement(s) in millimeters in the text field and add to your basket.

Please allow a manufacturing process of up to 7 working days due to the bespoke nature of these Neon Tubes.

The delivery method selected will apply after the manufacturing process.

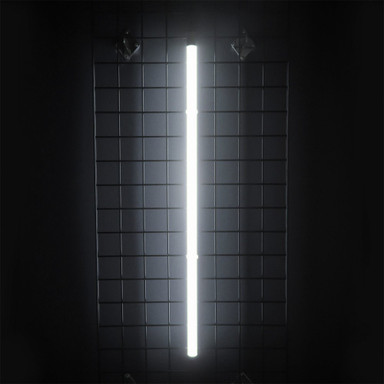

Designed to create a stunning ambient light display with 350º Illumination and dimming capabilities. Available in Cool White 6000K and with an option of either White or Black end caps and standard cable length of 3 metres.



being only 25mm in diameter and lightweight, these tubes are designed to either be floor mounted with the addition of a floor stand or wall mounted with the use of mounting brackets, both options are listed above in the 'useful add ons you may need' section



Please Note: These tubes will require a 24V LED driver to be powered on. The power requirements are determined by the length of the tube, as a guide please see the lengths below as an example



Up to 500mm: 7 Watts



501 to 1000mm: 14 Watts



1001 to 1500mm: 21 Watts



1501 to 2000mm: 28 Watts



Dimming Compatibility

• • Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM
  • Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.

A narrow dark spine will be visible along the back of these light tubes when illuminated, this is detailed in the imagery. This Cool White Neon Tube will require a controller in order to dim correctly.
