Tagra | SM8 | 6.6 x 3.4mm | LED Profile Diffuser | Plastic | 2, 3, 10 & 20 Metre
DIF-MICRO
From £2.57 Inc. VAT
Key Features
- Available Diffuser Colours: Semi Clear, Black
- Available Diffuser Shapes: Flat Diffuser
- Body material: Polycarbonate (PC)
- Available Lengths: 2M, 3M, 10M, 20M
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
Product Overview
Specifications:
- Material: High-grade PC material optimized for LED light dispersion.
- Available Lengths: 2, 3, 10 & 20 Metres
- Compatibility: Compatible with 7.8x9mm (789) aluminium profile
- Transparency Options: Semi-Clear, Black
Enhance your LED lighting experience with our premium Diffuser for Micro 7.8x9mm Aluminium LED Channel. Expertly designed to distribute light evenly and minimize the intensity of individual LED dots, this diffuser ensures a smooth and seamless glow in your space.
Designed meticulously to fit Micro Aluminium LED Channels of 7.8x9mm dimensions. Perfect for safeguarding and elevating the look of your LED strip lighting.
Choose the ideal length for your project needs. Available in 2, 3, 10 & 20 Metre options.
Transparency Variants: Tailor your lighting experience with our four different transparency options:
- Clear: For those seeking direct, crisp lighting with minimal diffusion.

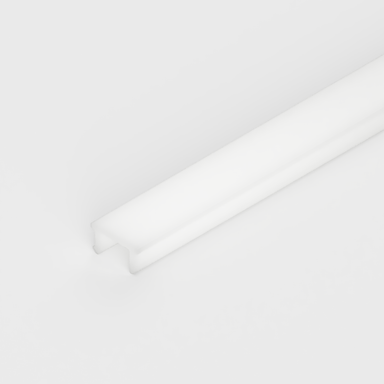

- Semi-Clear: Offers a balance between sharp illumination and soft diffusion.
- Opal: Ideal for achieving a softer, more ambient glow with reduced LED 'hotspots'.

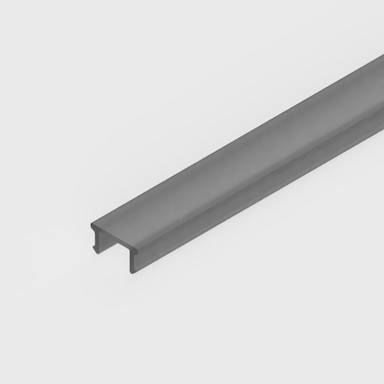

- Black: Provides a sleek, muted aesthetic, diffusing light subtly and evenly.
Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile.
- Transparent Diffuser: 90-95% of the brightness of the installed LED strip light will shine through
- Semi-Clear Diffuser: 70-75% of the brightness of the installed LED strip light will shine through
- Opal Diffuser: 45-50% of the brightness of the installed LED strip light will shine through
- Black Diffuser: 30-40% of the brightness of the installed LED strip light will shine through
Please Note: This product includes the diffuser only. LED strips and aluminium channels are sold separately.
Product Specification
Available Lengths | 2 Metres, 3 Metres |
Available Diffusers | Semi-Clear |
Material | Polycarbonate (PC) |
Compatible with | 789- |
Body Material | Polycarbonate (PC) |
Ingress Protection (IP) | 20 |
Diffuser Shape | Flat Diffuser |
Items/Sets Per Pack | 1 |
Brand | Tagra |
Max. Strip Width (mm) | 5.5 |
Product Height (mm) | 4 |
Width (mm) | 7 |
Family Name | 789 |
Warranty (Years) | 5 |
