DiGidot | DMX to SPI | 5-24V | C4 Extended | 4 Universes

Specifications:

• Input Voltage: 5-24V DC
• Dimensions: L153mm x W74mm x H28mm
• IP Rating: IP10
• Input Protocols: Art-Net 1, 2, 3, 4 | DMX512 (2 input)
• Output Channels: 2,048 Art-Net and/or up to 1024 DMX channels
• Ethernet: RJ45 compatible

Information:

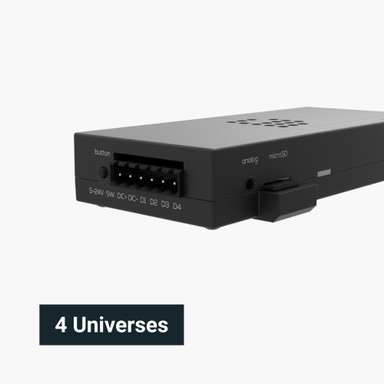

The DiGidot C4 Extended is a multi functional LED pixel controller that converts Art-Net and DMX to SPI protocols. The output capacity is 4 universes, which is 2,048 channels (depending on the license). The internal DHCP server, Wi-Fi and free DiGidot App grand easy access of the internal web interface. A built in network switch allows multiple DiGidot C4 controllers to be daisy chained to create an extensive control network.

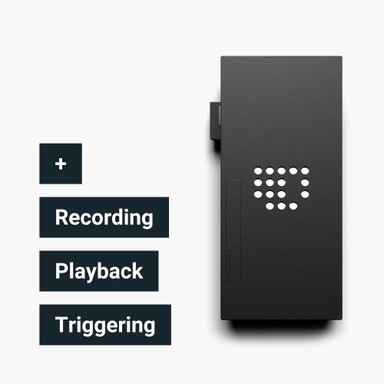

The DiGidot C4 Extended offers Art-Net & DMX recording, playback and triggering. Extensive triggering options such as analog and digital triggers as well as the integrated calendar offer great flexibility for system integration.

Countless extra features such as DMX in and out, Art-Net IP Address filter, Art-Net routing, HTP input signal merger, Art-Net & DMX Monitor, in-/output channel repeater, Gamma correction, adjustable fall back colour, output limiters, make this product to the most powerful LED pixel controller on the market.

Installation:

Available in IP10 making it suitable for indoor installation. Install the DiGidot C4 properly in a safe environment and protect the device from direct sunlight, rain, moisture. Make sure that the device is installed and secured properly and that it’s not able to move around.

Use the mounting holes on the underside of the housing to mount the DiGidot C4 to install the device vertically or horizontally (screws not included).

DIN-rail mounting instructions can be found in the User Manual (page 17).

Required Products:

Below are required to properly operate this product:

• 5-24V DC Power Supply
