Tagra | Quick Connect LED Neon Flex | Horizontal 15 | 15x26mm | RGB | 24V | IP65 | 12Wp/m | 50M Reel
NEONTOP-RGB/50M
£934.80 Inc. VAT
Key Features
- Key Spec Features: 50M Bulk Reel, Quick Connect Solderless System, Seamless Long Runs
- Application: Designed for Short-Term Installations; Exhibitions, Pop-up Events & Retail Installations, Light Trails

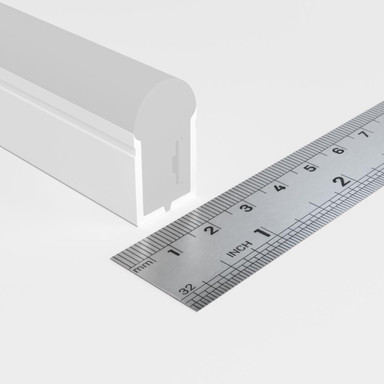

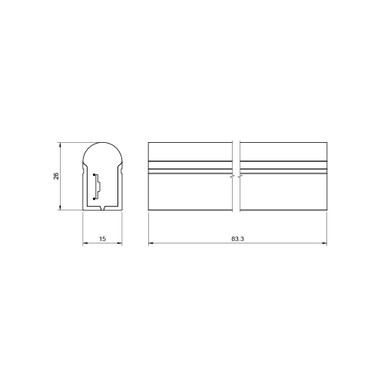

- Dimensions: W15mm x H26mm
- Bend Direction: Horizontal
- LM/M: Up to 138
- LM/W: Up to 12
- Max Run Length: 12m
- Available Colours: RGB
- Warranty: 1 Year Indoor / 6 Months Outdoor
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Short-Term Events / Immersive Experiences / Temporary Installations
- Bend Direction: Horizontal
- Voltage: 24V DC
- Power Consumption: 12W/m
- IP Rating: IP65
- Cut Points: 83.3mm
- Max Run Length: 12m
- Also available in 10M Kit (includes accessory kit)
- Available Colours: RGB
- Warranty: 1 Year Indoor / 6 Months Outdoor
Tagra Quick Connect LED Neon Flex – Horizontal 15
Designed for short-term applications where convenience and flexibility matter most, our next generation of Quick Connect Neon Flex is perfect for exhibitions, pop-up events, light trails, short-term retail installations, and immersive displays. Each 50m reel features a 500mm power cord pre-attached at one end. A 50m reel offers the flexibility of producing various cut lengths. Please note that accessory kits must be purchased in order to power the cut lengths from the 50m reel (one accessory kit per cut length). Enjoy bright, even illumination in a choice of colours, plus a solderless quick-connect system for quick, hassle-free setup and removal.
Key Features
- 50m Reel - cut to your desired length

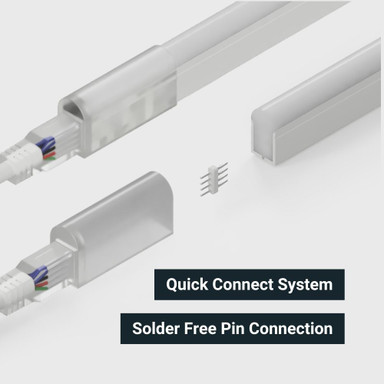

- Quick Connect solderless system for quick installation
- 12 metre max. run length when powered from one end
- 500mm power cord pre-attached to one side of 50m reel for easier installation
- Horizontal bend with 120° beam angle
Installation Guidance
Horizontal 15 has a ±1mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.
This product features a 500mm power cable pre-attached at one end. For every cut length of the neon reel, an accessory kit it required to power the cut length. For example, if you cut the 50m reel into 5x 10m lengths, then 5x accessory packs are required.
This product must be installed by a suitably competent person in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to commencing work. For best results, use appropriate mounting channels and accessories.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
- Accessory pack (required for every cut length from the 50m reel)
Product Specification
| Colour | RGB Colour Changing |
| Voltage | 24V |
| Water Resistance | IP65 |
| Impact Resistance | IK08 |
| Watts Per Metre | 12Watts p/m |
| Amps Per Metre | 0.5 Amps p/m |
| Lumens Per Metre | N/A |
| Length | 50 Metre Reel |
| Width | 15mm |
| Bend Direction | Horizontal |
| Max. Linear Run | 12 Metres |
| Cut Points | 83.3mm |
| Material | PVC |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 45°C |
| Guarantee | 1 Year Indoor, 6 Months Outdoor |
| Max. Run Length (m) | 12 |
| Body Material | PVC |
| Ingress Protection (IP) | 65 |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cut Points (mm) | 83.33 |
| Product Height (mm) | 26 |
| Depth (mm) | 50000 |
| Product Weight (g) | 23000 |
| Width (mm) | 15 |
| Battery Included | No |
| Lumens Per Metre (Lm/m) | 138 |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimensions LxWxH (mm) | 50000x15x26 |
| Brand | Tagra |
| Family Name | Quick Connect Series |
| Warranty (Years) | 0.5 |
| Body Colour | White |
| CRI | 80 |
| Lumens Per Watt (Lm/W) | 12 |
| Beam Angle (°) | 270 |
| SDCM | 3 |
| Chip Type | SMD5050 |
| Copper Foil Weight (oz) | 3 |
| PCB Type | FPCB |
| LEDs Per Metre (LEDs/m) | 72 |
| Entry Cable Direction | Rear |
