Tagra | Joinery LED Neon Flex | Mini 4 | 4x10mm | 4000K | 12V | IP65 | 8Wp/m | 5M Kit
NEONTOPMICRO410/5MKIT-NW
£108.60 Inc. VAT
Key Features
- 4000K
- Horizontal Bend
- 7.9 Watts p/m
- 5 Metre Kit
- Flat
- IP65
- 12V
- 30mm Max. Bend Radius
- Dimmable
Delivery from Tuesday 30th September
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 12V

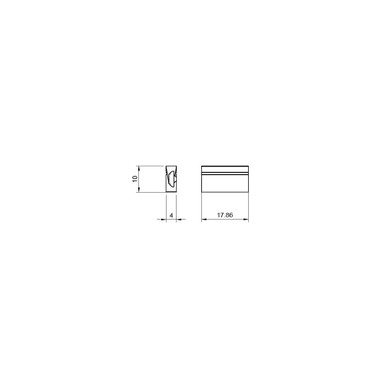

- Dimensions - 4mm x 10mm
- LED Type - SMD2835 in Epistar Chip
- Current: 0.6 Amp
- Unit/Cut Length – 17mm
- Max Load - 5m
- Power – 7.9W Per Metre
- Lumens - 300 Per Metre
- CRI - >80
- Jacket Type: Flat injection moulded silicone
- IP Rating - IP65 subject to correct installation.
- Max Bend Radius – 30mm

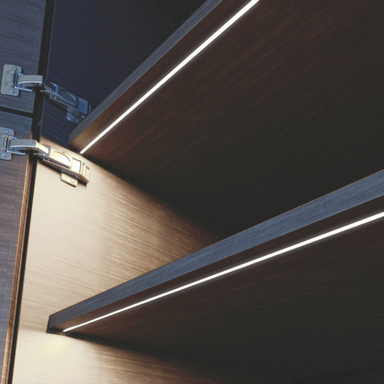

4x10mm Micro Neon Flex is a high-quality lighting solution designed primarily for furniture lighting. It has a silicone outer casing which means it is both durable and flexible and allows it to easily fit into a correctly sized routed groove, making for a flush, seamless finish to your installation.
Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur.
With its vibrant neon glow, this micro flex adds a touch of personality and style to any furniture piece. It is low voltage and energy-efficient, making it both safe and cost-effective to use.
Whether you're looking to light up a kitchen counter, accent a bookshelf, or brighten up a bathroom mirror, the 4x10mm Micro Neon Flex is the perfect choice for all your furniture lighting needs.
It's durable IP65 body allows for installations where light water exposure may occur, such as in a bathroom or kitchen.

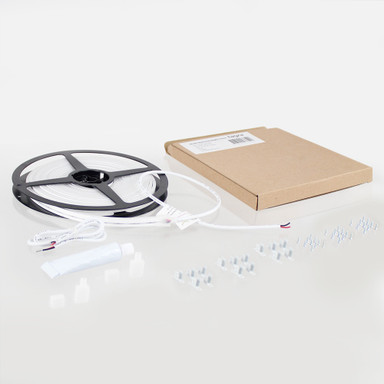

This 5m kit comes with everything you will need for installation including mounting brackets, endcaps, a spare 500mm length of 2 core cable, silicone sealant and a pre attached 2 core tinned end cable at one end, ready for hard wiring into a compatible controller and/or 12V driver.
Neon Flex can be dimmed via mains dimming, DALI, DMX, RF or 0-10 controllers.
Our 4x10 Micro Neon Flex comes with a 3 year guarantee as standard on indoor installations.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
Driver Requirements:
1 metre > 8w
2 metre > 16w
3 metre > 24w
4 metre > 32w
5 metre > 40w
all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
Colour | 4000K Neutral White |
Voltage | 12V |
Water Resistance | IP65 |
Impact Resistance | IK06 |
Watts Per Metre | 7.9Watts p/m |
Amps Per Metre | 0.65 Amps p/m |
Lumens Per Metre | 300 lm/m |
CRI | 90 |
Length | 5 Metre Reel |
Width | 4mm |
Bend Direction | Horizontal |
Max. Linear Run | 5 Metres |
Cut Points | 17mm |
Material | Silicone |
Min. Operating Temperature | -20°C |
Max. Operating Temperature | 45°C |
Guarantee | 3 Years |
Max. Run Length (m) | 5 |
Body Material | Silicone |
Ingress Protection (IP) | 65 |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 12-12V |
Cut Points (mm) | 17 |
LEDs Per Metre (LEDs/m) | 168 |
Product Height (mm) | 10 |
Depth (mm) | 5000 |
Product Weight (g) | 289 |
Width (mm) | 4 |
Battery Included | No |
CCT (Kelvin) | 4000 |
CCT Max. (Kelvin) | 4000 |
CCT Min. (Kelvin) | 4000 |
Lumens Per Metre (Lm/m) | 270 |
Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
Dimensions LxWxH (mm) | 5000x4x10 |
Colour Temperature Min. - Max. (Kelvin) | 4000-4000K |
Brand | Tagra |
Family Name | Joinery Series |
Warranty (Years) | 3 |
Body Colour | White |
Lumens Per Watt (Lm/W) | 34 |
Beam Angle (°) | 120 |
SDCM | 3 |
Cable Both Ends | No |
Cable Length (mm) | 500 |
Total Lumens (Lm) | 1350 |
Entry Cable Direction | Rear |
