Micro Horizontal Bend LED Neon Flex 4x10mm, Green, 5 Metre Kit

ID: NEONTOPMICRO410/5MKIT-GREEN

  • Horizontal Bend
  • 5 Metre Kit
  • 7.9 Watts p/m
  • Flat
  • IP65
  • 12V
  • 30mm Max. Bend Radius
  • Dimmable
  • Bulk Pricing Available
Was: £85.00
Now: £65.00
£78.00 inc. VAT

Useful add ons you may need:

Product Details

Micro Horizontal Bend LED Neon Flex 4x10mm, Green, 5m Kit

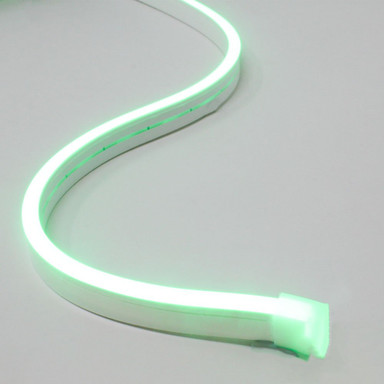

Introducing our smallest, most flexible LED Neon yet. The 4x10mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 30mm, making it ideal for use in signage and display installations both indoors and outdoors.

It's durable IP65 body allows for installations both in and outdoors where light water exposure may occur.

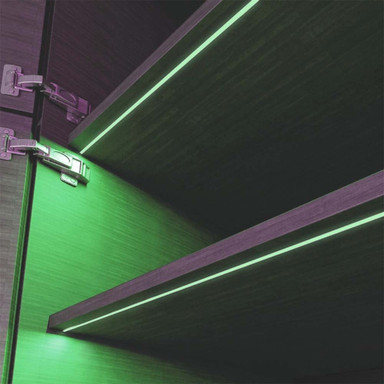

Neon Flex is a durable fully diffused linear light perfect for furniture and signage manufacturers thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur.

This 5m kit comes with everything you will need for installation including mounting brackets, endcaps, a spare 500mm length of 2 core cable, silicone sealant and a pre attached 2 core tinned end cable at one end ready for hard wiring into a compatible controller and/or 12V driver.

Neon Flex can be dimmed via mains dimming, DALIDMX, RF or 0-10 controllers.

Our 4x10 Micro Neon Flex comes with a 3 year guarantee as standard on indoor installations (1 year on outdoor installations).

-Standard Delivery from £3.59 inc VAT (Delivered in 2 -3 days)
-Next Day Delivery from £6.59 inc VAT (Order before 4pm - Next Working Day)

Dimming Compatibility

  • Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
  • Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.

Specifications:

  • Voltage: 12V

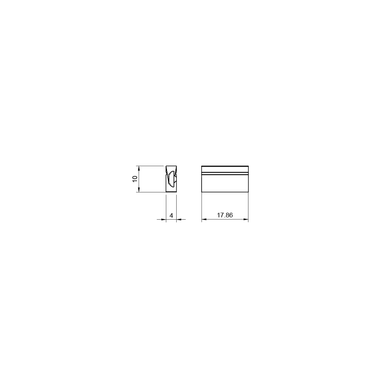

  • Dimensions - 4mm x 10mm
  • LED Type - SMD2835 in Epistar Chip
  • Current: 0.6 Amp
  • Unit/Cut Length – 17mm
  • Max Load - 5m
  • Power – 7.9W Per Metre
  • Lumens - 300 Per Metre
  • CRI - >90
  • Jacket Type: Flat injection moulded silicone
  • IP Rating - IP65 subject to correct installation.
  • Max Bend Radius – 30mm

Driver Requirements:
1 metre > 8w
2 metre > 16w
3 metre > 24w
4 metre > 32w
5 metre > 40w

all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Technical Documentation

Technical Specs
