Easy to Use Top View Micro LED Neon Flex 4x10mm, Red, 5m Kit

ID: NEONTOPMICRO410/5MKIT-RED

  • Horizontal Bend
  • 5 Metre Kit
  • Plug and Play
  • Flat
  • IP65
  • 12V
  • 30mm Max. Bend Radius
  • Dimmable
£85.69
£102.83 (Inc. VAT)

Useful add ons you may need:

Product Details

Easy to Use Top View Micro LED Neon Flex 4x10mm, Red, 5m Kit

Introducing our smallest, most flexible LED Neon yet. The 4x10mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 30mm, making it ideal for use in signage and display installations both indoors and outdoors.

It's durable IP65 body allows for installations both in and outdoors where light water exposure may occur.

Neon Flex is a durable fully diffused linear light perfect for furniture and signage manufacturers thanks to it’s easy to install plug and play technology. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur.

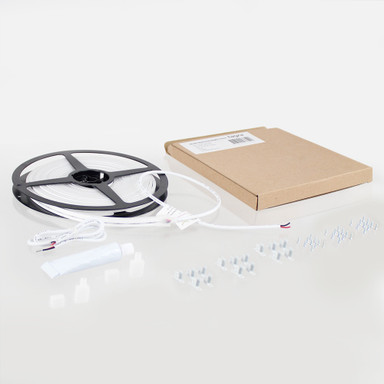

This 5m kit comes with everything you will need for installation, including mounting brackets, endcaps and plug and play cable compatible with our Syndeo Easy to Use range. N.B. Syndeo driver not included.

Neon Flex can be dimmed via mains dimming, DALIDMX, RF or 0-10 controllers.

Our 4x10 Micro Neon Flex comes with a 3 year guarantee as standard on indoor installations (1 year on outdoor installations).

Specifications:

  • Voltage: 12V
  • Dimensions - 4mm x 10mm
  • LED Type - SMD2835 in Epistar Chip
  • Current: 0.6 Amp
  • Unit/Cut Length – 17mm
  • Max Load - 5m
  • Power – 7.2W Per Metre
  • Lumens - 300 Per Metre
  • Jacket Type: Flat injection moulded silicone
  • IP Rating - IP65 subject to correct installation.
  • Max Bend Radius – 30mm

Driver Requirements:
1 metre > 8w
2 metre > 16w
3 metre > 24w
4 metre > 32w
5 metre > 40w

all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
