EU Chips | 24V | 150W | Constant Voltage | LED Driver Decoder | IP20

Features:

• Built in three channel DMX Decoder
• Flicker free dimming
• Dimming ranges from 0-100% with the capability of anLED start at 1%
• Wide range voltage Input from 100-240VAC
• High efficiency, up to 90%
• High Power Factor:>0.9(115VAC)
• Output short circuit protection, over current protection and over voltage protection

Technical Specificatons:

• Output Channels: 3 channels
• Input Voltage: 100-240VAC
• Input Frequency: 50/60HZ
• Power Factor: ≧0.9
• Dimming Mode: DMX512 dimming
• Output Voltage: 24V DC
• Output Power: Total 150W
• Output Current/Each Channel: 2.08A Per Channel

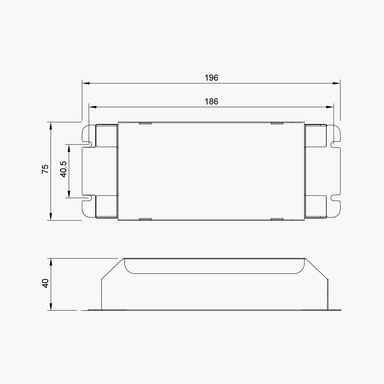

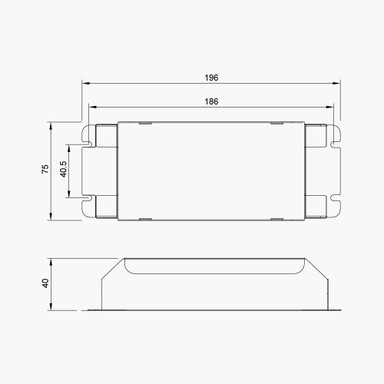

• Dimensions: L 196mm x W 75mm x H 40mm
• Working Temperature: -30℃ ~ 40℃
• Safety Standards: EN61347, GB19510

An all in one driver and DMX decoder, suitable for stage, events and heavy duty domestic applications. This all in one unit is designed to save space, time on install and cost by eliminating the need for having seperate drivers and controllers and the cabling to connect the different components.

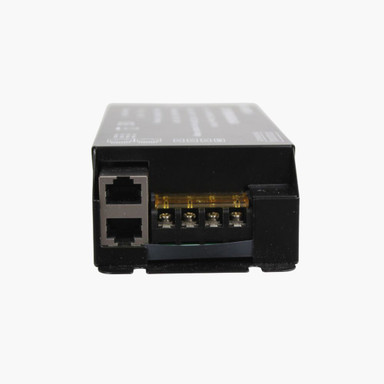

This Driver also features flicker free dimming and contains RJ45 DMX connectors which are a cheaper and manageable cabling solution when compared to XLR.

Please note: This driver is IP20 and non waterproof so needs to be housed in a cool dry environment at all times. This driver will also need to be housed in a class 1 metal enclosure.
