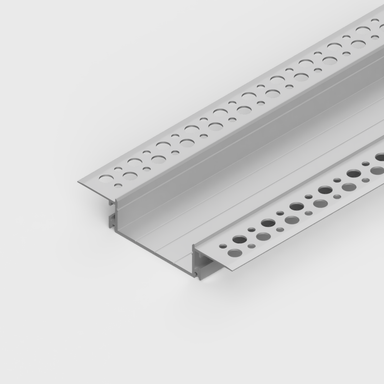

Tagra | PIL50 | Plaster In | Large | 50 x 19.3mm | LED Profile | 2 & 3 Metre

Specifications:

• Dimensions: 98x18mm
• Max Tape Width: 30mm or 3 x 10mm width LED strips
• Material: Anodized Aluminium



Applications:

• Offices: In meeting rooms or reception areas for a modern and upscale feel.
• Hotels: In lobbies, corridors, or rooms for a luxurious touch.
• Retail: Highlight displays or shelves, creating a focus on products.
• Living Rooms: As indirect cove lighting, producing a cosy and ambient atmosphere.
• Bedrooms: around the perimeter of the ceiling for a relaxing ambiance.
• Hallways: Providing guidance and ambient light.



Additional information:

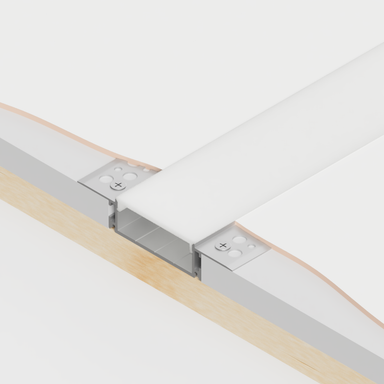

• Can be recessed into plasterboard

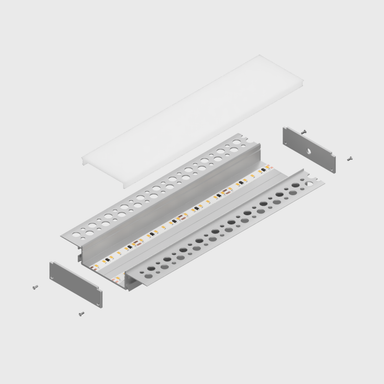

• End caps available



Extra-wide plaster-in LED aluminium profiles are designed for embedding into plasterboard (drywall) ceilings or walls, offering a seamless integration where only the light emission is visible and the actual profile is hidden. This creates a smooth and continuous light slot and a clean and modern appearance.



The extra-wide plaster-in LED aluminium profiles offer a sophisticated solution to modern lighting challenges, blending seamlessly with architectural features while providing efficient and aesthetically pleasing lighting.



Hints and tips:

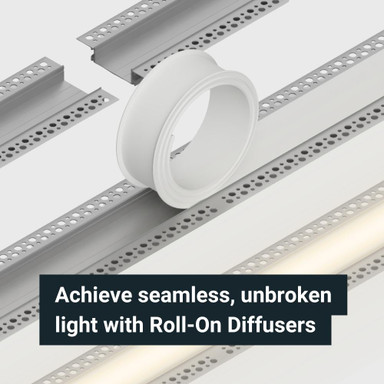

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The separately sold semi clear diffuser means 70-75% of the brightness of the installed LED strip light will shine through.



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor use in dry and damp environments.

This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry environments and in damp environments such as bathrooms when installed using a suitably IP-rated LED strip light.
