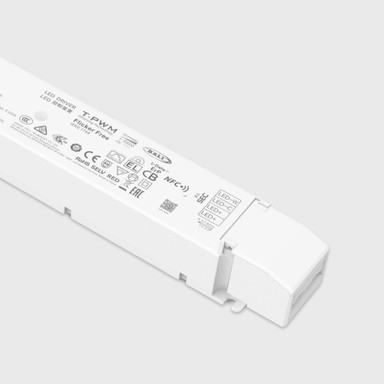

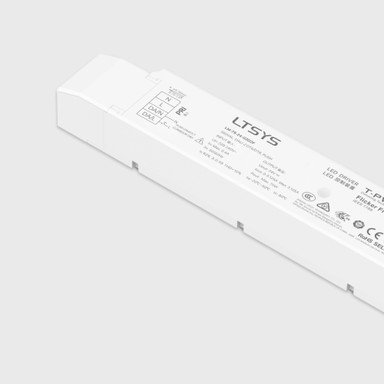

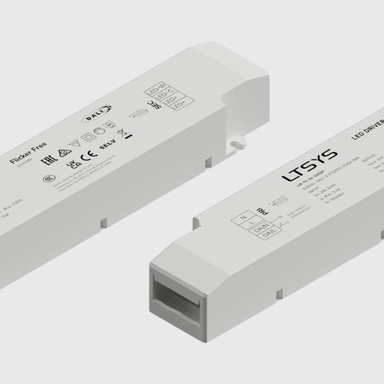

LTECH | 24V | 75W | Constant Voltage | DALI DT6/DT8 CCT Dimmable LED Driver | IP20

Specification

• 24V Constant Voltage DALI-2 Dimmable LED Driver
• DALI-2 (DT6/DT8) dimming for single colour and CCT control
• Push DIM / CCT support for manual control
• Input voltage: 220–240VAC
• IP20 rated for indoor applications
• Protections: short circuit, overload, over-voltage, over-temperature
• Fanless design with intelligent thermal management
• Operating temperature: ta: -20°C to +50°C, tc: up to +80°C
• High efficiency: up to 92%
• Power factor: >0.98
• Dimming range: 0–100% (down to 0.01%)
• Standby power consumption: <0.5W
• Lifetime: up to 100,000 hours
• 5 year warranty

Introducing the 75W 24V DALI LED Driver from market-leading brand LTECH. Designed using high-quality components, this driver delivers efficient, reliable performance for professional LED lighting applications, with built-in protection against overheating, overload, short circuit, and over-voltage conditions.

The updated specification allows dimming mode, brightness range, and DALI configuration templates to be set via NFC using a mobile app. It also supports corridor lighting dimming modes and is compatible with occupancy and motion sensors (AC switch type), offering flexible control across a wide range of environments.

Featuring dual independent SELV constant voltage output channels, the driver supports both single-colour and tunable white (CCT) lighting applications, providing enhanced flexibility for LED strip installations. It also supports over-the-air firmware updates for straightforward system upgrades.

The driver supports both DALI-2 DT6 and DT8 control modes, allowing it to operate as either a single-colour driver or a tunable white (CCT) solution. DT6 provides precise dimming for single-colour lighting, while DT8 enables control of colour temperature or dual-channel outputs from a single DALI address.

With a DALI-2 interface, it enables precise dimming from 0–100%, with ultra-deep dimming down to 0.01% and flicker-free performance. Advanced thermal management ensures safe operation and a long service life of up to 100,000 hours under normal operating conditions.
