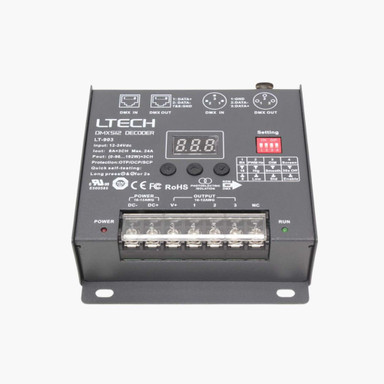

LTECH | DMX | 12-24V | LED Decoder | 3 Channel | 8A | RGB | IP20

Technical Specifications:

• Input signal: DMX512
• Voltage: 12V~24V DC
• Output: Constant Voltage
• Channels: 3
• Current: 8A ×3CH 24A Max
• Max output power: 576W
• Dimensions (mm): 122L x 110W x 37H
• Guarantee: 5 Years

Suitable for controlling RGB LED Strip only.

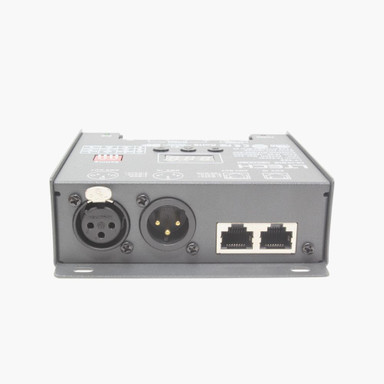

Featuring RJ45 and 3pin XLR sockets. The DMX address is displayed digitally and adjusted by pressing buttons mounted next to the display or Via RDM remote management protocol. The frequency of the output (PWM signal) and the dimming curve can both be adjusted to give optimum dimming across the 3 output channels. Also, the dimming increments can be adjusted to either 8bit (256 levels) or 16bit (65536 levels).

Comes complete with photoelectric isolation, short circuit, overheating and overcurrent protection as well as a warning function for when faults occur. Also includes a fast self-testing function.

This is a call to order product with a 30 day lead time, please give us a call on 0800 088 3300 to order.

Please note: This control receiver requires a DMX control signal in order to function.

This controller is capable of powering up to 864 Watts of 12V LED lighting or 1728 Watts of 24V LED lighting.

An LED driver is required in order to power the LEDs connected to the output. The power output of this decoder is determined by the power output of the LED driver. As an example, to power 150 Watts of LED lighting you will require an LED driver with at least 150 Watts of power.
