LTECH | 24V | 240W | Constant Voltage | DALI DT6/DT8 CCT Dimmable LED Driver | IP20
LM-240-24-G2D2
£150.00 Inc. VAT
Key Features
- Dimming Type: DALI-2 DT6/DT8, PUSH DIM, PWM
- Dimming Range: 0% - 100%
- CV / CC: Constant Voltage (CV)
- Input Voltage: 220V - 240V
- Output Voltage: 24V
- Max Amps per Channel: 10A
- IP Rating: 20
- Body Material: Plastic
- Product Dimensions (mm): L380xW50xH30
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- Output Voltage: 24V DC
- Output Current: Max. 10A
- Output Power: 240W
- Dimming Range: 0~100%
- Dimming Interface: DALI-2 DT6/DT8, Push DIM/CCT
- Efficiency: 94%

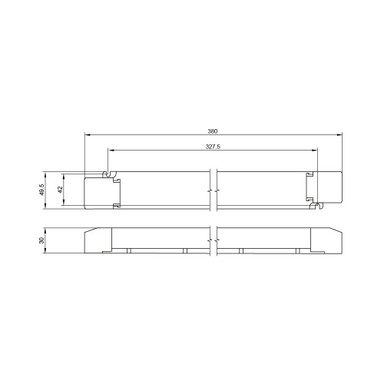

- Dimensions (mm): 380 x 49.5 x 30
- Warranty: 5 Years
Information:
Introducing our range of DALI LED Drivers for market-leading brand LTECH. These high performance LED Drivers have been designed and built with quality materials and components. Highly efficient, secure and reliable, they come with built-in protection and a 5 year warranty as standard.
Featuring a DALI-2 DT6/DT8 or Push DIM/CCT interface and a dimming range of 0~100%, capable of dimming down to 0.01%. They produce a high performance, flicker-free output. Also features an innovative thermal management technology that intelligently protects for the lifetime of the driver.
This intelligent tunable white LED Driver features CCT channels on the input and output sides. Designed for 0-100% brightness adjustment and setup to allows for a 1000K-10000K adjustable colour temperature range.
Installation:
Available in IP20 making it suitable for indoor installation. Can be installed onto a surface via the mounting points located at either end of the LED Driver.
Product Specification
Adjustable PWM | Yes |
Warranty (Years) | 5 |
Control Signal - Input | DALI-2 |
Control Signal - Output | PWM |
Dimmable | Yes |
Dimming Type | DALI-2 DT6/DT8, PUSH DIM, PWM |
Power Factor (A) | 0.99 |
Body Material | Plastic |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | Interior |
Mounting Type | Surface Mounted |
Storage Humidity Max. (°C) | 95 |
Working Humidity Max. (°C) | 95 |
Input Control Connection Type | Bare end |
Input Current Type (A) | AC |
Input Terminal / Connector Type | Screw terminal |
Number of Input Terminals | 2 |
Input Frequency Min. - Max. (Hz) | 50-60Hz |
Input Voltage Min. - Max (V) | 220-240V |
Body Colour | White |
Product Height (mm) | 30 |
Product Weight (g) | 555 |
Width (mm) | 50 |
Constant Voltage / Constant Current | CV |
Max. Output Current Per Channel (A) | 10 |
Number of Control Channels | 2 |
Number of Output Terminals | 2 |
Output Current Max. (A) | 10 |
Output Current Type | DC |
Output Terminal / Connector Type | Screw terminal |
Output Voltage Min. - Max. (V) | 24-24V |
Power Cord Included | No |
Over Current Protection | Yes |
Over Temperature Protection | Yes |
Over Voltage Protection | Yes |
Reverse Polarity Protection | No |
Short Circuit Protection | Yes |
Dimming Range Min. - Max (%) | 0-100% |
Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
Dimensions LxWxH (mm) | 380x50x30 |
Brand | LTECH |
Wattage (W) | 240 |
Family Name | DALI |
