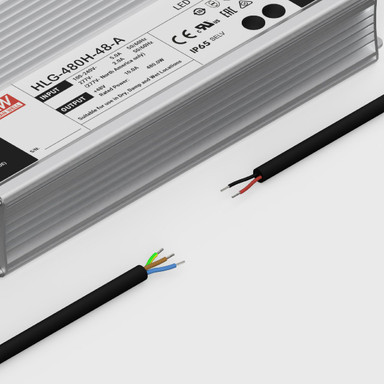

Mean Well | HLG | 48V | 480W | Constant Voltage | Non-Dimmable LED Driver | IP65
HLG-480H-48A
£174.00 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input Voltage: 90V-305V
- Output Voltage: 48V
- Max Amps per Channel: 10A
- IP Rating: 65
- Body Material: Metal
- Product Dimensions (mm): L262xW125xH44
- Warranty: 7 Years
Quantity | Price |
---|---|
5 - 9 | £133.98 (save £40.02) |
10 - 24 | £130.50 (save £43.50) |
25 + | £123.54 (save £50.46) |
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- 48v Constant Voltage
- 480w Power Output
- 10 Amp Max
- Rated IP65
- Non Dimmable
- PFC / UL / CUL / ENEC / CB / CE Approved
- Short Circuit Protection
- Over Voltage Protection
- 7 Year Warranty
- Dimensions (overall L x W x H): 262mm x 125mm x 43.6mm
This LED driver is part of the HLG series from Mean Well, a well-respected brand in the power supply industry. It has a rated power output of 480 watts and an input voltage range of 90-305VAC, making it suitable for a wide range of applications.
The driver has a rugged, waterproof IP65-rated design, which makes it ideal for use in outdoor or wet environments. It is also highly efficient, with a power conversion efficiency of up to 94.5%. This means it will help you save on energy costs and reduce your carbon footprint.
In addition, the Mean Well HLG Series LED Driver has a built-in active PFC function, which ensures a high power factor of up to 0.95. This improves the overall efficiency of the driver and reduces the risk of harmonic distortion.
The driver is also equipped with multiple protections, including short-circuit, over-current, over-voltage, and over-temperature protection, ensuring a safe and reliable operation. The driver also comes with a 7-year warranty, giving you peace of mind and assurance in your purchase.
Overall, if you're looking for a high-quality, efficient, and reliable LED driver for your lighting projects, the Mean Well HLG Series LED Driver is an excellent choice.
Product Specification
Warranty (Years) | 7 |
Dimmable | No |
Application Environment | Outdoor |
Body Material | Metal |
Ingress Protection (IP) | 65 |
Interior or Exterior Use | Exterior |
Input Current Type (A) | AC |
Input Frequency Min. - Max. (Hz) | 47-63Hz |
Input Voltage Min. - Max (V) | 90-305V |
Body Colour | Silver |
Product Weight (g) | 2800 |
Constant Voltage / Constant Current | CV |
Max. Output Current Per Channel (A) | 10 |
Output Current Max. (A) | 10 |
Output Current Type | DC |
Output Voltage Min. - Max. (V) | 48-48V |
Battery Included | No |
Electrical Safety Class | I |
Over Current Protection | Yes |
Over Voltage Protection | Yes |
Short Circuit Protection | Yes |
Operating Temperature Min. - Max. (°C) | -40℃ to 90℃ |
Brand | Mean Well |
Family Name | HLG |
Wattage (W) | 480 |
Depth (mm) | 262 |
Product Height (mm) | 44 |
Width (mm) | 125 |
Dimensions LxWxH (mm) | 262x125x44 |
Dimming Type | Non-Dimmable |
