Mean Well | ODLV | 0-10V Dimmable LED Driver | Constant Voltage | 12V | 50.4W | IP67

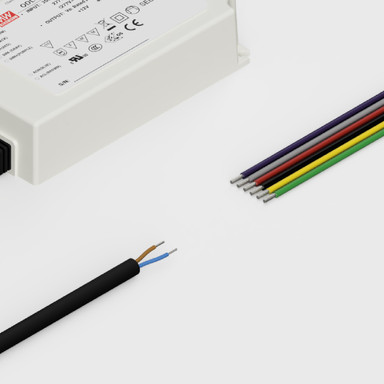

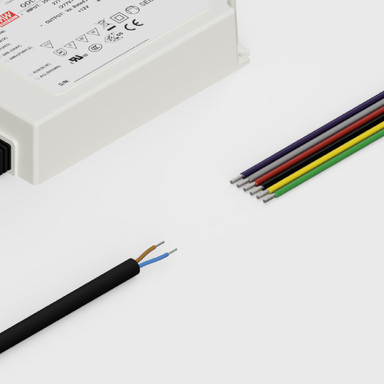

ODLV-65-12
£26.40 Inc. VAT
Key Features
- Dimming Type: PWM
- Dimming Range: 0% - 100%
- CV / CC: Constant Voltage (CV)
- Input Voltage: 180V - 295V
- Output Voltage: 12V
- Max Amps per Channel: 4.2A
- IP Rating: 67
- Body Material: Plastic
- Product Dimensions (mm): L121xW77xH29
- Warranty: 5 Years
ODLV-65-SPECPDF Download
Total
£26.40 Inc. VAT
Add to list
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- 12V Constant Voltage
- IP67
- Non-Dimmable
- 3 Year warranty
- 50.4W Power Output
- 4.2 Amp Max
Additional Information:
- Short circuit protection
- Over voltage protection
- Overload protection
- Fully isolated plastic case
- Small and compact design
- Cooling by free air convection
The Mean Well ODLV-65-12 LED driver is a practical and efficient power supply designed for LED lighting applications featuring constant voltage mode PWM style design. It is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting installations.
It is a reliable and practical choice for powering LED lighting systems. Its efficiency, protection features, and compliance with industry standards make it suitable for a variety of applications.
Product Specification
Adjustable PWM | No |
Warranty (Years) | 5 |
Control Signal - Input | PWM, 0-10 |
Control Signal - Output | PWM |
Dimmable | Yes |
Dimming Type | PWM |
Rated Life (Hours) | 50000 |
Power Factor (A) | 0.95 |
Application Environment | DOMESTIC, HOSPITALITY, COMMERICAL |
Body Material | Plastic |
Ingress Protection (IP) | 67 |
Interior or Exterior Use | Exterior |
Mounting Type | Surface Mounted |
Storage Humidity Max. (°C) | 95 |
Working Humidity Max. (°C) | 90 |
Input Cable Length (mm) | 200 |
Input Control Connection Type | Bare end |
Input Current Type (A) | AC |
Input Frequency Min. - Max. (Hz) | 49-63Hz |
Input Voltage Min. - Max (V) | 180-295V |
Body Colour | White |
DIN Rail Compatible | No |
Product Height (mm) | 29 |
Depth (mm) | 121 |
Product Weight (g) | 430 |
Width (mm) | 77 |
Constant Voltage / Constant Current | CV |
Load Min. (W) | 0 |
Output Current Type | DC |
Output Voltage Min. - Max. (V) | 12-12V |
Power Cord Included | Yes |
Electrical Safety Class | II |
Over Current Protection | Yes |
Over Temperature Protection | No |
Over Voltage Protection | No |
Reverse Polarity Protection | No |
Short Circuit Protection | Yes |
Dimming Range Min. - Max (%) | 0-100% |
Operating Temperature Min. - Max. (°C) | -20℃ to 85℃ |

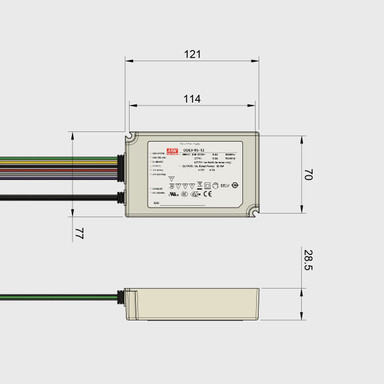

Dimensions LxWxH (mm) | 121x77x29 |
Brand | Mean Well |
Certification | EMC - 2014/30/EU |
Wattage (W) | 50.4 |
Family Name | ODLV |
Max. Output Current Per Channel (A) | 4.2 |
