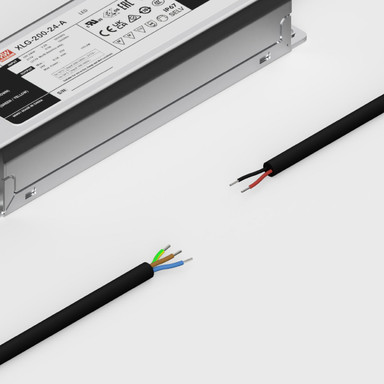

Mean Well | XLG | 24V | 200W | Constant Voltage | Non-Dimmable LED Driver | IP67
XLG-200-24-A
£57.60 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input Voltage: 100V - 305V
- Output Voltage: 24V
- Max Amps per Channel: 8.4A
- IP Rating: 67
- Body Material: Metal
- Product Dimensions (mm): L199xW63xH36
- Warranty: 5 Years
Quantity | Price |
---|---|
5 - 9 | £33.41 (save £24.19) |
10 - 24 | £32.26 (save £25.34) |
25 + | £30.82 (save £26.78) |
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- 24v Constant Voltage
- 199.2w Power Output
- 8.3 Amp Max
- Rated IP67
- Non Dimmable
- PFC / UL / CUL / ENEC / CB / CE Approved
- Short Circuit Protection
- Over Voltage Protection
- 5 Year Warranty

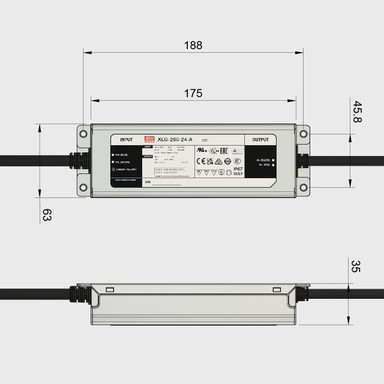

- Dimensions (L x W x H): 199mm x 63mm x 35.5mm
This robust high end LED driver is designed with the latest technology to provide efficient and reliable performance, making it ideal for a wide range of lighting projects.
Built to last, the Mean Well XLG Series LED Driver is encased in a durable IP67 rated casing, ensuring it's resistant to dust, water exposure, and other environmental factors. This makes it a perfect choice for use where reliable performance is critical.
The Mean Well XLG Series LED Driver also boasts a wide input voltage range of 90-305VAC, making it easy to use with a variety of different power sources.
With a power output of up to 200W, the Mean Well XLG Series LED Driver can easily handle demanding lighting applications, while maintaining its high level of efficiency. And thanks to its compact design, this driver is easy to install and integrate into your existing lighting system.
Overall, the 24V IP67 Mean Well XLG Series LED Driver is a reliable and versatile lighting solution that provides high-quality performance for both indoor and outdoor lighting projects. So, whether you're looking to power LED lights for your home or business, the Mean Well XLG Series LED Driver is the perfect choice.
Product Specification
Output | - |
Output Voltage | 24V |
Output Current | Up to 8.33 |
Rated Power | Up to 200 Watts |
Dimming Mode | Non Dimmable |
Input | - |
Input Voltage Range | 100 - 305VAC |
Input Frequency | 47/63Hz |
Power Factor | >0.95 |
Inrush Current | 65A |
Environment | - |
Ingress Protection | IP67 |
Min. Operating Temperature | -40°C |
Max. Operating Temperature | 90°C |
Protection | - |
Overload Protection | Yes |
Short Circuit Protection | Yes |
Over Voltage Protection | Yes |
Electrical Safety Class | I |
Guarantee | 5 Years |
Dimmable | No |
Power Factor (A) | 0.95 |
Application Environment | Outdoor |
Body Material | Metal |
Ingress Protection (IP) | 67 |
Interior or Exterior Use | Exterior |
Input Current Type (A) | AC |
Input Frequency Min. - Max. (Hz) | 47-63Hz |
Input Voltage Min. - Max (V) | 100-305V |
Body Colour | Silver |
Product Weight (g) | 850 |
Constant Voltage / Constant Current | CV |
Output Current Max. (A) | 8.33 |
Output Current Type | DC |
Output Voltage Min. - Max. (V) | 24-24V |
Battery Included | No |
Over Current Protection | Yes |
Operating Temperature Min. - Max. (°C) | -40℃ to 90℃ |
Brand | Mean Well |
Family Name | XLG |
Wattage (W) | 200 |
Depth (mm) | 199 |
Product Height (mm) | 36 |
Width (mm) | 63 |
Dimensions LxWxH (mm) | 199x63x36 |
Warranty (Years) | 5 |
Dimming Type | Non-Dimmable |
Max. Output Current Per Channel (A) | 8.4 |
Technical Documents
