Midi Vertical Bend 13x12mm LED Neon Flex, Warm White 3000K, 48V, 50m Reel

ID: NEONSIDE1312/50M-WW

  • 50 Metre Length
  • Flat
  • IP67
  • 3000K
  • Vertical Bend
  • 60mm Min. Bend Radius
  • 48V
  • 5.3 Watts P/M
  • Dimmable
  • Salt Water Resistant
  • 90 CRI
£885.00
£1,062.00 (Inc. VAT)

Useful add ons you may need:

Product Details

Midi Vertical Bend 13x12mm LED Neon Flex, Warm White 3000K, 48V, 50m Reel



Introducing our brand new range of IP67 Silicone Neon Flex, at only 13 x 12mm and Featuring 90CRI spot free high lumen output highly versatile uniform lighting, this revolutionary neon flex can be recessed or surface mounted, making it a complete systematic installation solution.

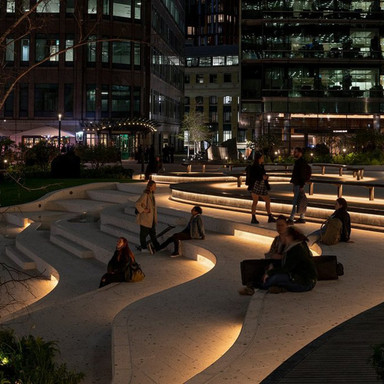

Also featuring resistance to saline solutions, acid & alkali, corrosive gases, fire and UV, this Neon Flex is a perfect lighting solution for both heavy duty and display lighting requirements. These features make this Neon Flex suitable for installations on yatchs, super yatchs, facade lighting, indoor and outdoor projects.

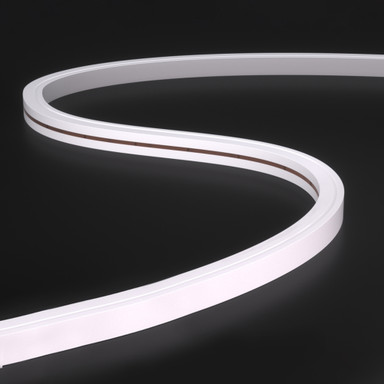

Making use of a vertical bend and side light emittance it can be easily moulded and shaped to your requirements and is a more up to date modern solution to PVC neon.

This neon will require a 48V Driver with at least 370 watts of power for a full 50 metre run.

This 50 metre reel includes

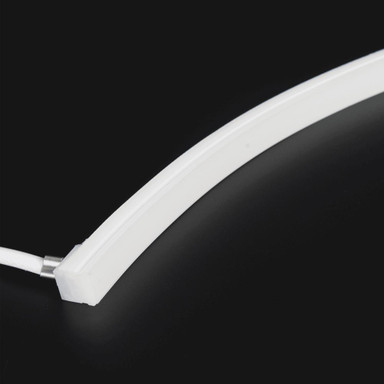

A 50 metre reel of silicone neon flex, supplied in one full 50 metre run, with a 1 metre pre attached 2 core cable ready for hardwiring into a controller or driver. Being 48 Volts, this neon flex can achieve a full 50 metre run by being powered from one end.

Additional end caps and mounting brackets are available in 'Useful add ons you may need' above.

-Standard Delivery from £3.59 inc VAT (Delivered in 2 -3 days)
-Next Day Delivery from £6.59 inc VAT (Order before 4pm - Next Working Day)

Dimming Compatibility

  • Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
  • Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.

Why Silicone Neon?

High Substitutability

Various lighting effects can be can achieved including white light, RGB and digital tuning, it can replace the traditional glass neon tube, guardrail tube, rainbow tube making it perfect for signage lighting, architectural lighting, landscape lighting and many more applications.

High Thermal Conductivity

The thermal conductivity of silicone is 0.27 Watts per Metre/Kelvin versus the 0.14 Watts Per Metre Kelvin of PVC, meaning a better management of heat dissipation and increased lifespan.

Resistant to UV

Silicone Neon can be used outdoor environment for long-term exposure to direct sunlight, no yellowing and aging over 5 years.

Flame Retardant

it is environmental and non-toxic with a high ignition point, non-flammable in needle-flame tests.

Resistant to Corrosive Gasses

Resistance to corrosive gases, include chlorine, sulfur dioxide, hydrogen sulfide, nitrogen dioxide and so on, the silicone neon strip with long life span can be used for an industrial environment.

Dust Proof

The seamless silicone exterior means no dust can get in, increasing the applications this can be used for and the lifespan.

Outstanding Weather Resistance

In an environment between -50ºC and +150ºC , it can maintain it’s original state, without becoming brittle, deformed, softening or aging. When applied in an environment between the temperature of -20ºC and +45ºC , it can function to it’s full capabilities resisting both extreme cold and high heat levels.

Resistance to Corrosion

The silicone properties of this neon allow it to resist corrosion of normal salt, alkalis and acids. This means it can be used for environments such as beach locations, yachts, chemical plants, mines and laboratories.

Performance Features:

  • Suitable for indoor and outdoor use
  • Salt water resistant
  • Solvent resistant
  • UV Resistant
  • Flame Resistant

Technical Specifications:

  • Voltage: 48V
  • Wattage per metre: 5.3 Watts P/M
  • Colour Temperature: 3000K
  • Lumens Per Metre: 320
  • Minimum Bend Radius: 60mm
  • CRI: >90 CRI

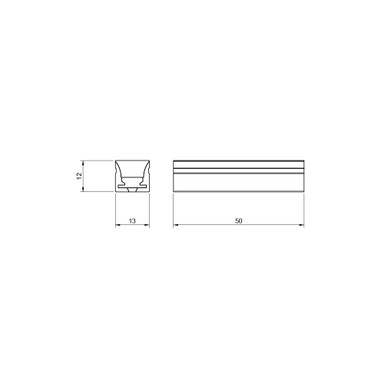

  • Dimensions (WxHxL): 13mm x 12mm x 50,000mm
  • IP Rating: IP67
  • IK Rating: IK08
  • Cut Points: Every 100mm
  • Operating Temperature: -20ºC to + 45ºC
  • Lifespan: Up to 36,000 hours
  • Certification: CE, RoHs, UL and REACH
  • Guarantee: 3 Years

Please Note: IP67 rating is subject to correct installation and applies to the Neon Flex only. The driver and connection to the driver will need to be housed in a dry environment or enclosure if this is not suitable for outdoor use.

all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
