Tagra | SS12 | Surface Mounted | Standard | 12 x 7.1mm | LED Profile | 0.9, 2 & 3 Metre
1207
From £3.24 Inc. VAT
Key Features
- Overall Dimensions: 12x7.1mm
- Light Emitting Surface: 12mm
- Max Tape Width: 8mm
- Optimal Tape - Professional COB
- Available in: 0.9, 2 & 3 Metres
- Roll on Diffusers for seamless diffusion 10 & 20 Metres
- NEW Save costs with 0.9M with guaranteed Next Day Delivery
For CAD files, please sign in
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Dimensions: 12mm x 7mm
- Max Tape Width: 8mm
- Material: Anodized Aluminium
Applications:
- Accent Lighting: Their discreet size makes them perfect for subtle accent lighting in both residential and commercial settings.

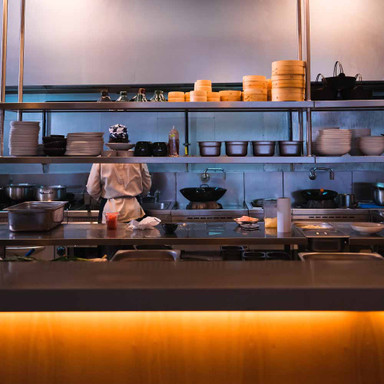

- Under-Cabinet Lighting: In kitchens, these profiles can be mounted under cabinets to provide task lighting without being too conspicuous.
- Shelf Lighting: In retail displays or home decor, they can illuminate shelves, highlighting products or decorative items.
Additional information:
- Ideal for wardrobe installations and display lighting
- Not suitable for waterproof tape due to the silicone casing being too large for the profile.

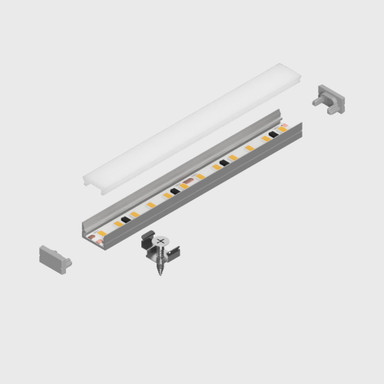

- End caps and mounting brackets sold separately in the 'you may also need' section above
- Available in a choice of black, white and silver powder coated finishes
- Choice of 0.9, 2 or 3 metre lengths for each colour
- Choose your diffuser with a choice of opal, semi clear, transparent or no diffuser

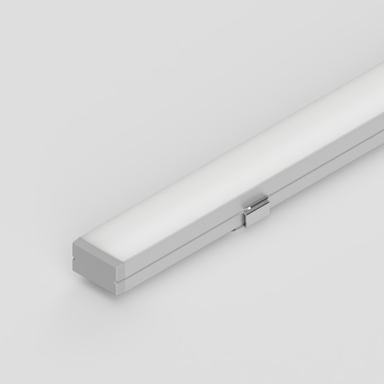

This mini LED aluminium channel is a great profile for practically any project where intricacy is a must, whether it's a kitchen, bar or workplace, mounting brackets are sold separately for an easy mounting solution. This profile can also be recessed if required.
This mini aluminium channel is ideal for housing and protecting LED strip lights. It will provide a surface mounted installation under cabinets and furniture pieces while also reducing undesirable secondary refraction from reflecting surfaces. LED profiles in general serve as a heat sink for the installed LED strip light, extending their lifespan and reducing any brightness loss over time.
Each channel selection is available with an opal, semi-clear or transparent diffuser, which helps diffuse the light from each LED in a much more consistent pattern and also reduces glare.
Hints and tips:
Diffusers
Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile.
- Transparent Diffuser: 90-95% of the brightness of the installed LED strip light will shine through
- Semi-Clear Diffuser: 70-75% of the brightness of the installed LED strip light will shine through
- Opal Diffuser: 45-50% of the brightness of the installed LED strip light will shine through
As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.
As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.
Non-spotting finish
To achieve a highly desired non spotting finish, consider using this profile with an LED a COB LED strip light. This is a shallow profile so the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.
Bespoke lengths available
Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.
Perfect for indoor use in dry environments.
This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry environments.
Due to the mini size of this profile it is unable to house IP rated LED strip lights with a silicone casing. This is because the silicone jacket on IP rated stops the diffuser from being clipped down correctly.
Product Specification
Installation Type | Surface Mounted |
Available Colours | Black,White,Silver |
Available Lengths | 2 Metres,3 Metres |
Material | Anodised Aluminium, PC Diffuser |
IP Rating | IP20 Non Waterproof |
External Width | 12mm |
External Height | 7mm |
Max. LED Strip Width | 8mm |
Internal Height | 4.7mm |
Body Material | Anodised Aluminium, PC Diffuser |
Ingress Protection (IP) | 20 |
Mounting Type | Surface Mounted |
Diffuser Colour | No Diffuser |
Max. Strip Width (mm) | 8 |
Items/Sets Per Pack | 1 |
Brand | Tagra |
Body Colour | Silver |
Width (mm) | 12 |
Product Height (mm) | 7 |
Family Name | 1207 |
Beam Angle (°) | 108 |
Warranty (Years) | 5 |
