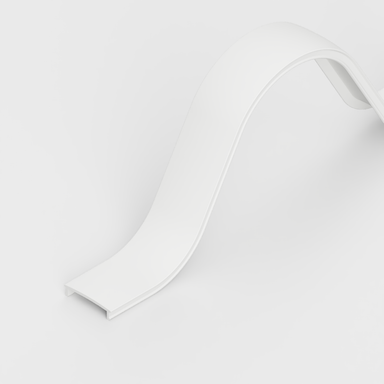

Tagra | PIS24 | 22.2 x 5mm | LED Profile Diffuser | Silicone | 2, 3, 10 & 20 Metre

DIFSIL-PLSTD

From £6.60 Inc. VAT

Key Features

Available Diffuser Colours: Opal
Available Diffuser Shapes: Flat Diffuser
Body Material: Silicone

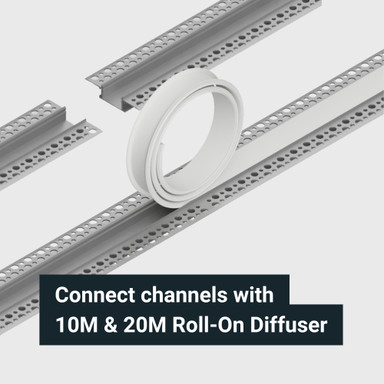

Available Lengths: 2M, 3M, 10M, 20M
Warranty: 5 Years

DIFSIL-PLSTD-20M-OPAL Declaration Of ConformityDeclaration of Conformity

Select Length

Select...

Total

£6.60 Inc. VAT

Pay by card, American Express, PayPal, Apple Pay or Google Pay

Delivery & Returns

Free UK DeliveryOrders over £75
Next Day DeliveryFrom £8.95
Returns14 Day Policy

Product Overview

Product Specification

Technical Documents

Customer Reviews

Product Overview

Specifications:

Dimensions: 20.7x3mm

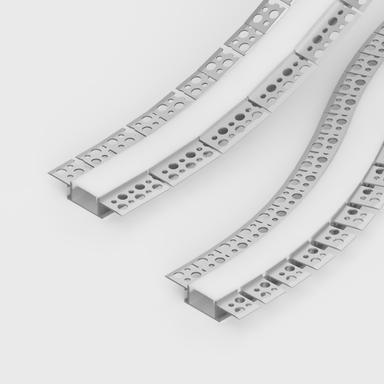

Compatability: 61x14mm (6114) Aluminium Profile
Length: 2000mm, 3000mm, 10000mm
Material: Silicone
Finish: Opal (with anti-dust coating)

Hints and tips:

Diffusers

Silicone diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The separately sold silicone diffuser means 50-60% of the brightness of the installed LED strip light will shine through.

Non-spotting finish

Vertical Bend: To achieve a highly desired non spotting finish we recommend using an LED light strip with a minimum of 120 LEDs per metre.

Horizontal Bend: To achieve a highly desired non spotting finish we recommend using 2x lengths of our PS24 140 LEDs per metre strip, attached to both internal sides of the profile.

As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.

Product Specification

Available Lengths	2 Metres, 3 Metres, 10 Metres, 20 Metres
Available Diffusers	Opal Silicone
Material	Silicone
Compatible with	6114, 6114B
Body Material	Silicone
Ingress Protection (IP)	20
Diffuser Shape	Flat Diffuser
Items/Sets Per Pack	1
Brand	Tagra
Product Height (mm)	5
Width (mm)	22
Max. Strip Width (mm)	20
Family Name	6114
Warranty (Years)	5
