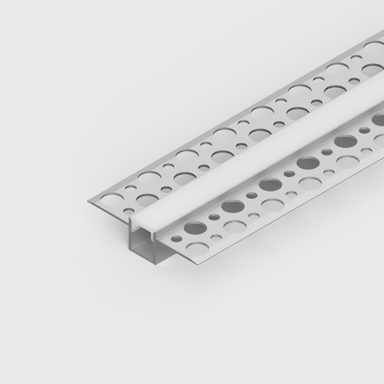

Tagra | PISM13 | Plaster In | Small | 13 x 14mm | LED Profile | 2 & 3 Metre

Specifications:

• Dimensions: 52.1x13.3mm
• Max Tape Width: 10mm
• Material: Anodized Aluminium



Applications:

• Ceilings: Create lighting features in living rooms, hallways, or bedrooms.
• Wall Accents: Highlight unique architectural features or artworks on walls.
• Floor Level Lighting: Illuminate pathways in hallways or around the perimeter of rooms for a dramatic effect.
• Staircases: Embed the profiles into the sides or beneath stair treads for both aesthetics and safety.



Additional information:

• Ideal for our 10mm width Tapes
• Ideal for ceiling lighting
• End caps available and sold separately



A slim plaster-in LED aluminium profile is designed to be seamlessly integrated into drywall or plastered surfaces, resulting in a clean, minimalistic appearance where the LED strip and the profile itself are embedded and flush with the surface. Such an approach offers a sleek, modern lighting solution.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The separately sold semi clear diffuser means 70-75% of the brightness of the installed LED strip light will shine through.



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Semi clear diffusers will make the Kelvin Temperature/CCT appear cooler.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 240 LEDs per metre or a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor use in dry and damp environments.

This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry environments and in damp environments such as bathrooms when installed using a suitably IP-rated LED strip light.
