Tagra | Decor LED Neon Flex | Dual Circ 25 | 25x25mm | RGB | 24V | IP65 | 14.4Wp/m | Custom
NEON36025-RGB
Key Features
- Product Dimensions (mm): W25xH25
- Bend direction: Dual
- Lm/m (up to): 400 Lm/m
- Lm/W (up to): 28 Lm/W
- Run length (max): 5 m
- Available Colours: RGB
- Warranty: 3 Years
For LDT & CAD files, please sign in
Product Overview

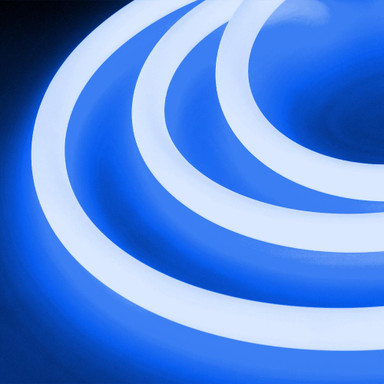

Introducing Our 25x25 RGB Circular LED Neon Flex

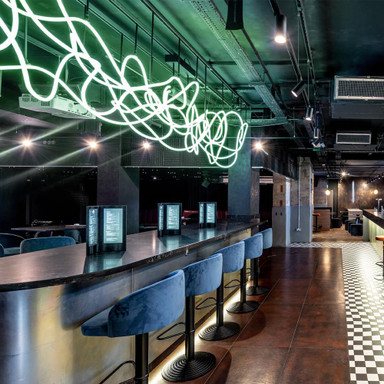

Ideal for a variety of indoor installations, our 25x25 RGB Circular LED Neon Flex is constructed from high-quality silicone and boasts exceptional flexibility & durability. Whether you're looking to enhance architectural features, create eye-catching retail displays, or elevate your residential projects, our Professional 25x25 RGB Circular LED Neon Flex produces 360° of spotless illumination, creating a unique visual impact.
From architectural elements to decorative lighting, this LED neon flex is engineered to offer unparalleled flexibility, allowing for effortless bending and shaping to accommodate even the most intricate designs and layouts. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Key Features

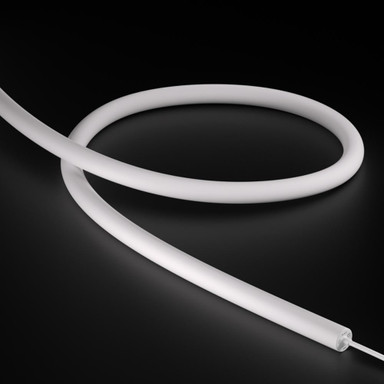

With dual bend flexibility, this LED neon has a minimum bend diameter of 240mm. It offers uniform, shadow-free illumination across all colours and as is available in custom lengths sold by the metre. The durable, anti-yellowing silicone material is rated at IP65 making it suitable for indoor installations. A 360° beam angle delivers smooth uninterupted light, and pre-soldered tails enable quick setup. Comes with a 3 year warranty as standard.
Specifications
- Voltage: 24V DC
- Typ. Power: 14.4W/m
- LEDs per metre: 280 LEDs
- Cut Points: 50mm
- Beam Angle: 360°

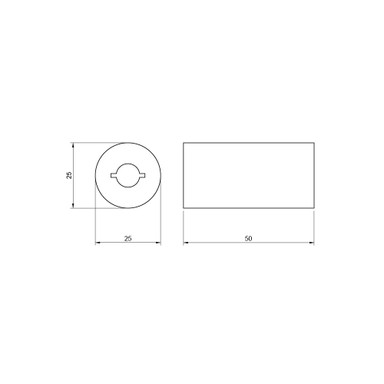

- Dimensions: W25mm x H25mm
- Lumens per metre: Up to 510lm
- Warranty: 3 Years
- IP Rating: IP65 (suitable for indoor use)
Installation
The IP65-rated LED Neon Flex is designed for indoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
- A compatible RGB Controller
Product Specification
| Colour | RGB Colour Changing |
| Voltage | 24V |
| Water Resistance | IP65 |
| Impact Resistance | IK08 |
| Watts Per Metre | 14.4Watts p/m |
| Amps Per Metre | 0.6 Amps p/m |
| Lumens Per Metre | N/A lm/m |
| Length | Sold per Metre |
| Width | 25mm |
| Bend Direction | Dual |
| Max. Linear Run | 5 Metres |
| Cut Points | No Cutting |
| Material | Silicone |
| Min. Operating Temperature | -25°C°C |
| Max. Operating Temperature | 55°C |
| Guarantee | 3 Years |
| Max. Run Length (m) | 5 |
| Body Material | Silicone |
| Ingress Protection (IP) | 65 |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| LEDs Per Metre (LEDs/m) | 334 |
| Product Height (mm) | 25 |
| Product Weight (g) | 1070 |
| Width (mm) | 25 |
| Battery Included | No |
| Operating Temperature Min. - Max. (°C) | -25℃ to 55℃ |
| Dimensions LxWxH (mm) | 1000x25x25 |
| Brand | Tagra |
| Family Name | D?cor Series |
| Warranty (Years) | 3 |
| Body Colour | White |
| Cut Points (mm) | 50 |
| Lumens Per Watt (Lm/W) | 28 |
| Lumens Per Metre (Lm/m) | 400 |
| Beam Angle (°) | 360 |
| CRI | 90 |
| SDCM | 2 |
| Entry Cable Direction | Rear, Side, Bottom |
| Interior or Exterior Use | Interior |
