Tagra | SLC30 | 29 x 29mm | LED Profile Diffuser | Plastic | 2 & 3 Metre
DIF-BCRN
From £8.88 Inc. VAT
Key Features
- Compatible with 30x30mm Corner Aluminium Profile
- Available in Semi-Clear and Opal
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
Product Overview
Specifications:
- Material: High Grade PC
- Channel Compatibility: CHAN-3030
- Available Lengths: 2 & 3 Metres
- Transparency Options: Semi-Clear, Opal
This diffuser is designed specifically for our large corner 30x30mm LED aluminium channel and offers a perfect blend of form and function. Whether you’re working on an architectural project or setting up ambient lighting for a room, this diffuser ensures even light distribution while maintaining a polished and sophisticated appearance.
Choose between our semi-clear and opal options. The semi-clear variant offers a subtle diffusion, maintaining a balance between transparency and light dispersion, while the opal option provides a softer glow, diffusing light with a higher degree of opacity for a cozy ambiance.

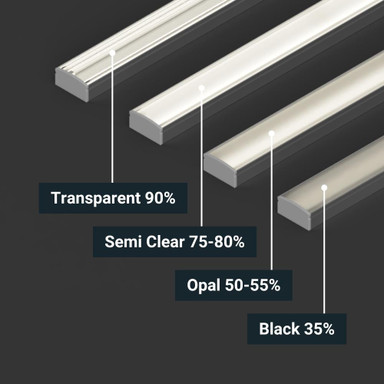

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile.
- Transparent Diffuser: 90-95% of the brightness of the installed LED strip light will shine through
- Semi-Clear Diffuser: 70-75% of the brightness of the installed LED strip light will shine through
- Opal Diffuser: 45-50% of the brightness of the installed LED strip light will shine through
Please Note: This product includes the diffuser only. LED strips and aluminium channels are sold separately.
Product Specification
Available Lengths | 2 Metres, 3 Metres |
Available Diffusers | Semi-Clear, Opal |
Material | Polycarbonate (PC) |
Compatible with | CHAN-3030 |
Body Material | Polycarbonate (PC) |
Ingress Protection (IP) | 20 |
Diffuser Shape | Domed Diffuser |
Items/Sets Per Pack | 1 |
Brand | Tagra |
Max. Strip Width (mm) | 20 |
Product Height (mm) | 29 |
Width (mm) | 29 |
Family Name | 3030 |
Warranty (Years) | 5 |
