Tagra | Pro LED Neon Flex | Vertical 13 | 13x12mm | RGB | 24V | IP67 | 13.2Wp/m | 10M Kit (v1)
NEONSIDE1312/10MKIT-RGB-V2
£270.90
£189.62 Inc. VAT
Key Features
- Up to 950 Lumens per metre
 - IP67
 - 13mm x 12mm
 - 3 Year Warranty
 - 83.33mm Cut Points
 - Vertical Bending
 - Available in 10 Metre Kits
 - Available in RGB

Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
 - Next Day DeliveryFrom £8.95
 - Returns14 Day Policy

Product Overview
Introducing Our RGB 13x12 Vertical Bend LED Neon Flex
Ideal for a variety of installations, our 13x12 Vertical Bend LED Neon Flex is constructed with high quality silicone material and used for vertical applications. Ideal for dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent non-spotting illumination.
From architectural elements to decorative lighting, this LED neon flex features professional grade components and high quality materials. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Kit Includes
- 2x 500mm Power Cable
 - 2x Pairs of Top/Bottom End Caps
 - 2x Solder-Free End Caps
 - 10ml Silicone Glue
 - Pack of 28 Mounting Brackets

Key Features

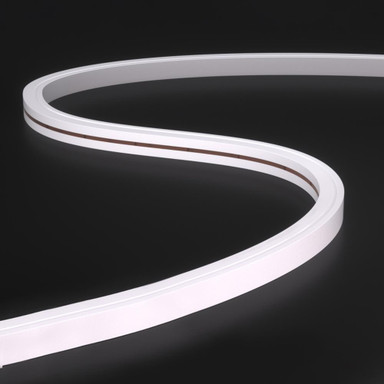

With vertical bend flexibility, this LED neon has a minimum bend diameter of 120mm. It offers uniform, shadow-free illumination across all colours and is available in 10 metre kits. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and pre-soldered tails enable quick setup. Comes with a 3 year warranty as standard.
Specifications
- Voltage: 24V DC
 - Typ. Power: 12.0W/m
 - LEDs per metre: 84 LEDs
 - Cut Points: 83.33mm
 - Beam Angle: 120°

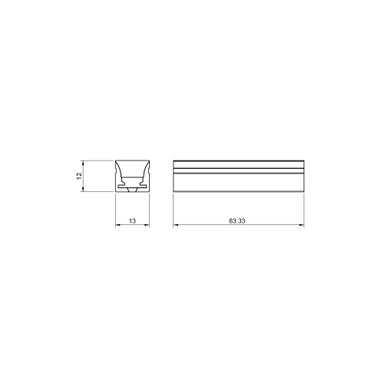

 - Dimensions: W13mm x H12mm
 - Lumens per metre: Up to 950lm
 - Warranty: 3 Years
 - IP Rating: IP67 (suitable for indoor and outdoor use)

Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
 - A compatible RGB Controller

Product Specification
| Colour | RGB Colour Changing |
| Voltage | 24V |
| Water Resistance | IP67 |
| Impact Resistance | IK08 |
| Watts Per Metre | 13.2Watts p/m |
| Amps Per Metre | 0.55 Amps p/m |
| Lumens Per Metre | lm/m |
| Length | 10 Metre Reel |
| Width | 13mm |
| Bend Direction | Vertical |
| Max. Linear Run | 10 Metres |
| Cut Points | 83.3mm |
| Material | Silicone |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 45°C |
| Guarantee | 3 Years |
| Max. Run Length (m) | 5 |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cut Points (mm) | 83.33 |
| LEDs Per Metre (LEDs/m) | 84 |
| Product Height (mm) | 12 |
| Depth (mm) | 10000 |
| Product Weight (g) | 1680 |
| Width (mm) | 13 |
| Battery Included | No |
| Lumens Per Metre (Lm/m) | 520 |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimensions LxWxH (mm) | 10000x13x12 |
| Brand | Tagra |
| Family Name | Pro Series |
| Warranty (Years) | 3 |
| Body Colour | White |
| Lumens Per Watt (Lm/W) | 433 |
| Beam Angle (°) | 120 |
| CRI | 90 |
| Cable Both Ends | Yes |
| Cable Length (mm) | 1000 |
| Total Lumens (Lm) | 5200 |
| SDCM | 3 |
| Entry Cable Direction | Rear |
