Tagra | SSC16 | Surface Mounted | Standard Corner | Domed | 16 x 16mm | LED Profile | 0.9, 2 & 3 Metre
CHAN-1616-
From £3.36 Inc. VAT
Key Features
- Overall Dimensions: 16x16mm
- Light Emitting Surface: 16mm
- Max Tape Width: 10mm
- Optimal Tape - Professional COB
- IP20
- Available in: 0.9, 2 & 3 Metres
- Roll on Diffuser for seamless diffusion 10 & 20 Metres
- NEW Save costs with 0.9M with guaranteed Next Day Delivery
For CAD files, please sign in
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:

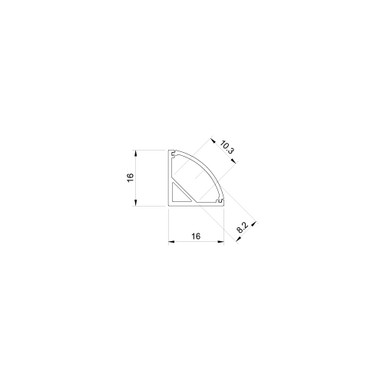

- Dimensions: 16 x 16mm
- Max Tape Width: 10mm

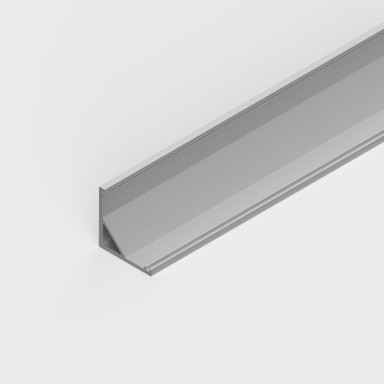

- Material: Aluminium
Applications:
- Under-Cabinet Lighting: Their discrete design makes them perfect for illuminating kitchen countertops from beneath cabinets without creating visual clutter.
- Display Cabinets & Shelving Units: Use these profiles to highlight items on shelves or inside glass cabinets in homes or retail environments.
- Staircase Lighting: Illuminate the edges of staircases for both aesthetic appeal and safety.

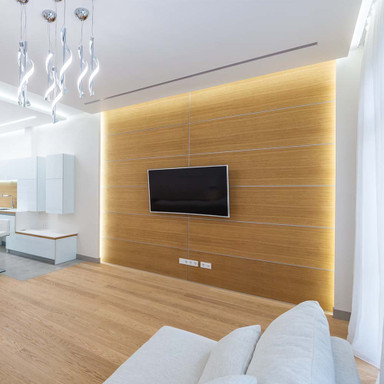

- Wall Accents: These profiles can be used to create indirect lighting effects in living rooms, bedrooms, or corridors.
Additional information:
- Available in silver, black and white
- Available in 0.9m, 2m & 3m
- Semi clear, opal and black diffusers available

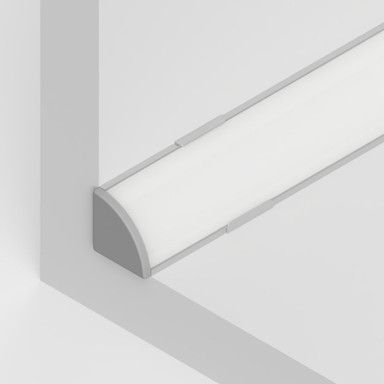

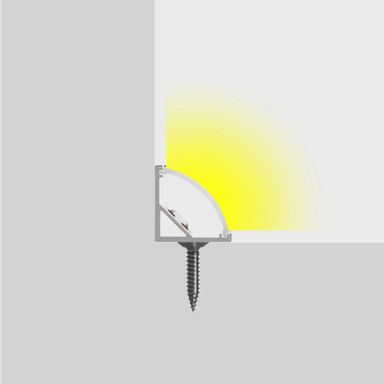

- Designed to be installed in 90° corners
- End caps available to purchase separately
Small corner LED aluminium profiles are designed specifically for installation in 90-degree corners and provide a sleek, professional finish for LED strip light installations. These profiles, due to their compact size, are especially useful for projects that require discreet lighting solutions.
Hints and tips:
Diffusers
Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile.
- Transparent Diffuser: 90-95% of the brightness of the installed LED strip light will shine through
- Semi-Clear Diffuser: 70-75% of the brightness of the installed LED strip light will shine through
- Opal Diffuser: 45-50% of the brightness of the installed LED strip light will shine through
As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.
As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.
Non-spotting finish
To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.
Bespoke lengths available
Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.
Perfect for indoor and outdoor use in dry and damp environments.
This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors and outdoor in dry environments and in damp environments such as bathrooms and outdoor decking lighting when installed using a suitably IP-rated LED strip light.
Product Specification
Installation Type | Surface Mounted Corner |
Available Colours | Black,White,Silver |
Available Lengths | 2 Metres,3 Metres |
Material | Anodised Aluminium, PC Diffuser |
IP Rating | IP20 Non Waterproof |
External Width | 16mm |
External Height | 16mm |
Max. LED Strip Width | 10mm |
Interal Height | 8.2mm |
Body Material | Anodised Aluminium, PC Diffuser |
Ingress Protection (IP) | 20 |
Mounting Type | Surface Mounted |
Max. Strip Width (mm) | 10 |
Items/Sets Per Pack | 1 |
Brand | Tagra |
Product Height (mm) | 16 |
Width (mm) | 16 |
Family Name | 1616 |
Beam Angle (°) | 114 |
Warranty (Years) | 5 |
