Tagra | LED Strip Snap Connector | RGB+W | 14mm | Tape to Wire | IP65 | Pack of 2

Technical Specifications:

• LED Tape Compatibility: RGBW colour changing LED tapes with 30 to 120 LEDs per Meter IP silicone encased LED tape, 14mm in width
• Rated Current Current: Up to 5 Amps
• Rated Voltage: 0-36V
• Operating Temperature: -20ºC to +50ºC
• PU Casing Temperature Resistance: 105º
• Compatible Wire Diameter (Including Insulation) : 1.5mm to 2.1mm
• Casing Material: PU
• Contact Point Material: Copper
• Fire Resistance: Conforms to UL 94-V0

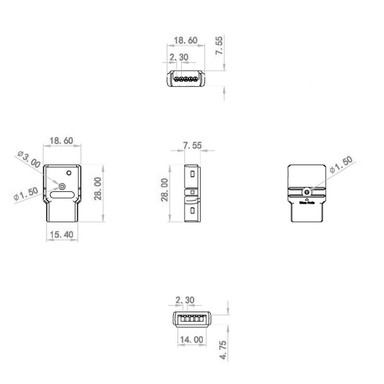

• Dimensions (W x L x H): 18.60mm x 27mm x 7.55mm
• Certification: CE, RoHS

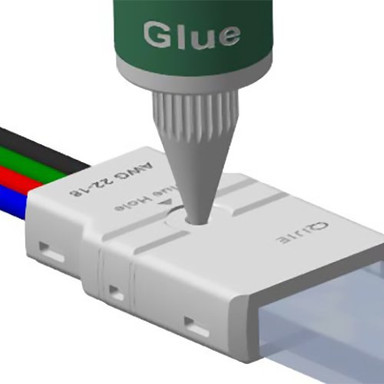

A new innovative design of Solderless IP rated connectors designed to connect 5 core cable to an IP rated RGBW LED tape with a width of 14mm. As well as the connector, included in the pack is a tube of silicone ready for post installation injection to maintain IP65 rating once secured.

Minimise your installation times and costs with this new connection system, designed to be both simple to fit and maintain a long term professional standard installation.

These can also be used as corner connectors with a length of 5 core cable installed between two connectors and connecting two runs of LED tape.

Installation instructions can be downloaded below.

Supplied with a 10ml tube of transparent silicone sealant.

Please Note: IP Rating is subject to correct installation, suitable for installation into LED channel with an internal width of 18.6mm or more. NOT compatible with COB LED Tapes. Cable NOT included.
