Tagra | LED Strip Solderless Connector | RGB+W | 12mm | Tape to Wire | IP20 | With Wire | Pack of 10
BB-CONSOL-RGBW-12MM-TW
£30.00 Inc. VAT
Key Features
- Solderless Connection
- Max. Current 4A
- Compatible with IP20 12mm RGBW Tapes
- Use with IP20 Tapes Only
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview

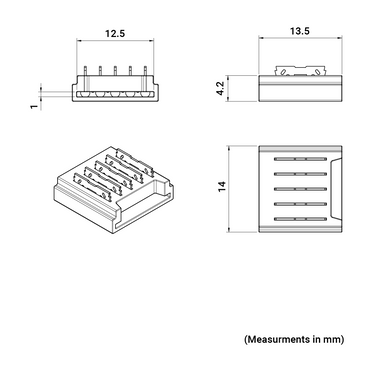

Technical Specifications:
- Required LED Tape Width: 12mm
- Max Amps: Up to 4 Amps
- Connector Width: 14mm
- Cable Length: Supplied with a 10 metre length of Black 5 Core Pro Low Voltage Cable
- Cable Gauge: 20 AWG

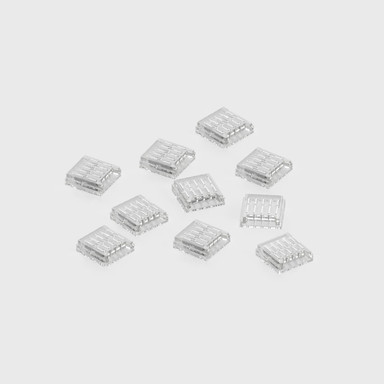

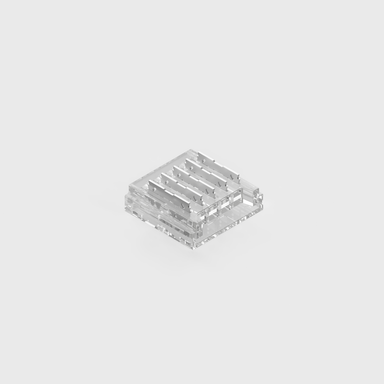

This pack of 10 Solderless Tape-to-Wire Connectors is specially designed for use with 12mm IP20 RGBW LED strip lights. These connectors make it easy to connect your LED strip lights to a power source without the need for soldering.
The pack includes 10 connectors, enough for multiple projects or repairs. The connectors provide a secure and reliable connection for your LED strip lights, ensuring that your lighting stays in place and functions properly.
They are easy to use and are perfect for both professional and DIY installations. Simply insert the run of LED strip into one end and the provided 5 core cable into the other end, ensure the polarity is correct, and secure using a pair of pliers (plastic pliers recommended).
These connectors are an efficient and convenient solution for your LED lighting projects, ensuring that your LED strip lights are always connected and working properly.
Please note: Designed for use with 12mm RGBW IP20 Tape only. Not compatible with RGBW LED tape with more than 60 LEDs per metre and not compatible with IP65/67 RGBW LED tape.
If using inside LED channel, please ensure the internal width of the channel is more than 14mm and the internal height is 4.5mm or more.
Product Specification
Ingress Protection (IP) | 20 |
Product Weight (g) | 0 |
Battery Included | No |
Items/Sets Per Pack | 10 |
Brand | Tagra |
Body Material | Plastic |
Body Colour | Transparent |
Width (mm) | 14 |
Family Name | Solderless Connectors |
Warranty (Years) | 2 |
Max. Strip Width (mm) | 12 |
