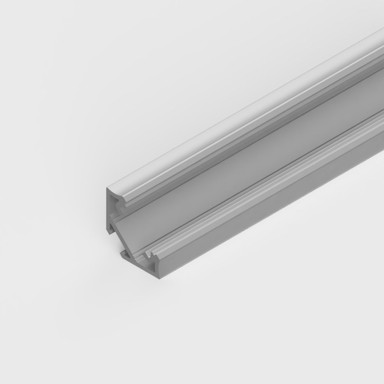

Tagra | SSC17 | Surface Mounted | Standard Corner | Flat | 16.6 x 16.6mm | LED Profile | 2 & 3 Metre

Specifications:

• Dimensions: 16.6 x 16.6mm
• Max Tape Width: 12mm
• Material: Anodized Aluminium



Applications:

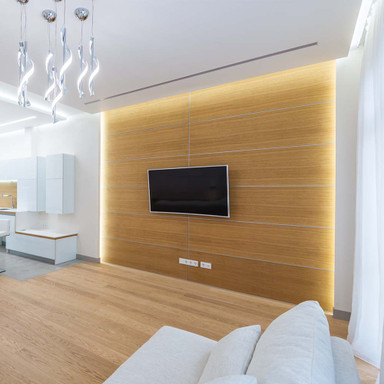

• Architectural Accents: Highlighting features such as coves, beams, or other structural elements in homes or commercial spaces.
• Display Cabinets: In retail, museums, or personal display cabinets, to illuminate items from the edges.
• Under-Cabinet Lighting: Particularly in kitchens or workshops, providing task lighting right where it's needed.
• Staircase Lighting: Along the edges or underneath steps to ensure visibility and safety.
• Window Frames: To add decorative lighting around windows, especially for commercial displays or during festive seasons.



Additional information:

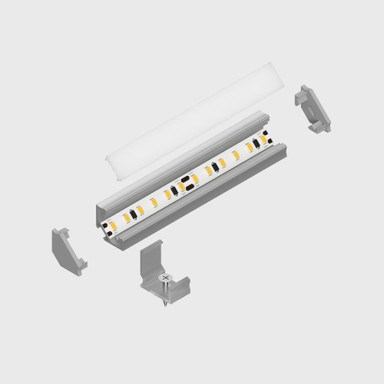

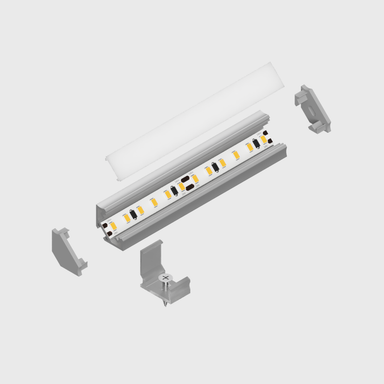

• End caps and mounting brackets sold separately in the 'you may also need' section above
• Available in a choice of black, white and silver powder coated finishes
• Choice of 2 or 3 metre lengths for each colour
• 45° angled surface mounted finish

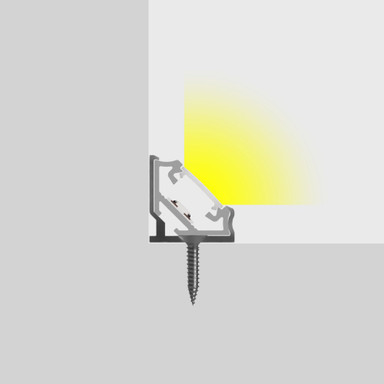

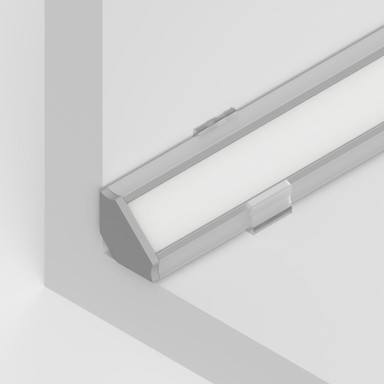

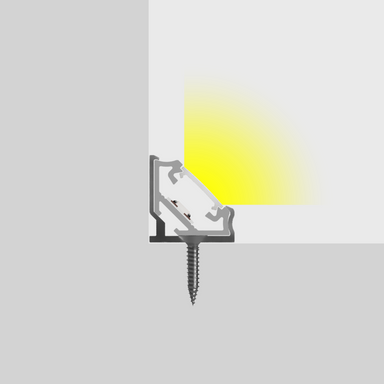

• Surface mounted corner profile designed for installations into 90° corners



Corner LED profiles, also known as corner LED channels or extrusions, are designed to fit into corners and provide a seamless and professional finish for LED strip installations.



Corner LED profiles offer a unique opportunity to add light to 90-degree angles and other tight spaces while also preventing undesirable secondary refraction from reflecting surfaces. They also serve as a heat sink for the installed LED strip light, extending their lifespan and reducing any brightness loss over time.

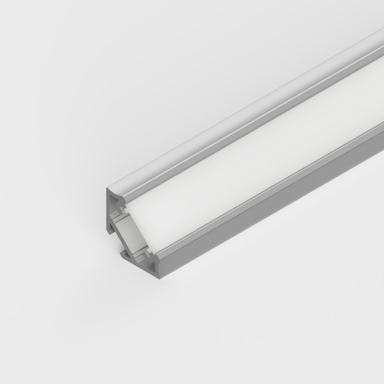

Each channel is available with an opal, semi-clear or transparent diffuser, which helps diffuse the light from each LED in a much more consistent pattern and also prevents glare.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile.



• Transparent Diffuser: 90-95% of the brightness of the installed LED strip light will shine through
• Semi-Clear Diffuser: 70-75% of the brightness of the installed LED strip light will shine through
• Opal Diffuser: 45-50% of the brightness of the installed LED strip light will shine through



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. This is a shallow profile so the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor and outdoor use in dry and damp environments.

This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors and outdoor in dry environments and in damp environments such as bathrooms and outdoor decking lighting when installed using a suitably IP-rated LED strip light.
