Tagra | SXL23 | Surface Mounted / Suspendable | Extra Large | 23 x 25mm | LED Profile | 2 & 3 Metre

Specifications:

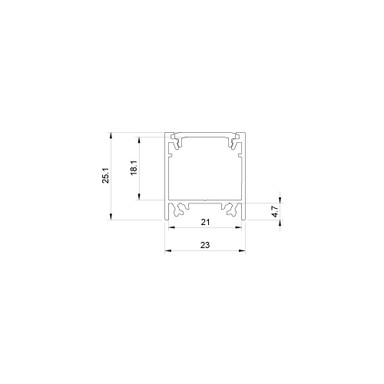

• Dimensions: 23x25mm
• Max Tape Width: 20mm
• Material: Anodized aluminium



Applications:

• Retail Displays: Illuminate shelves, product displays, and window presentations.
• Home Interiors: Under-cabinet lighting in kitchens, accent lighting in living rooms, or highlighting architectural features like coves or bulkheads.
• Office Spaces: Provide ambient lighting, or highlight specific areas like reception desks or boardroom tables.
• Commercial and Public Spaces: Lighting in malls, airports, train stations, or public plazas can benefit from the clean, uninterrupted line of light these channels provide.
• Outdoor Applications: When used with appropriate waterproof LED strips, these channels can be used in garden landscapes, patios, or underneath decking.



Additional information:

• Available in black white and silver
• Clear, semi clear and black diffusers avaliable



This versatile connectable LED channel can be suspended and surface mounted and has over 20 accessories available to help you achieve your desired results.



Connectable brackets include 60º, 90º and 120º angles meaning a whole host of shapes and displays can be created without the need to cut and mitre the LED profile



As well as the connection brackets there is also a selection of diffusers available, these are all click in and are available in and in standard and box variations for a deeper finish to enhance non spotting capabilities. The standard variation is also available in a continuous 20 Metre Length for a seamless diffuser finish.



A range of mounting brackets and suspension cables are also available to finish of this vast range of accessories providing an extremely versatile robust LED profile solution.



The Surface Mounted Connectable LED Aluminium Channel with dimensions like 23x25mm offers a blend of design flexibility and functionality. When planning an installation, it's essential to consider factors like the LED strip's power and brightness, the channel's compatibility, and the desired lighting effect.



The standard diffuser is also available in a continuous 20 Metre Length for a seamless diffuser finish.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile.



• Transparent Diffuser: 90-95% of the brightness of the installed LED strip light will shine through
• Semi-Clear Diffuser: 70-75% of the brightness of the installed LED strip light will shine through
• Opal Diffuser: 45-50% of the brightness of the installed LED strip light will shine through



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED that has 120 LEDs per metre or more and consider using an opal diffuser. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor use in dry and damp environments.

This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry environments and in damp environments such as bathrooms when installed using a suitably IP-rated LED strip light.
