Tagra | SL20 | Surface Mounted | Large | 19.5 x 22.7mm | LED Channel | Aluminium | 2 & 3 Metre
CHAN-2023
From £19.20 Inc. VAT
Key Features
- Surface Mounted
- 19.5 x 22.7mm
- Max Strip Light Width: 16mm
- Aluminium Channel
- Diffuser Included
- Available in 2 & 3 Metre Lengths
- Available in Silver & Black
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
Product Overview
Specifications:

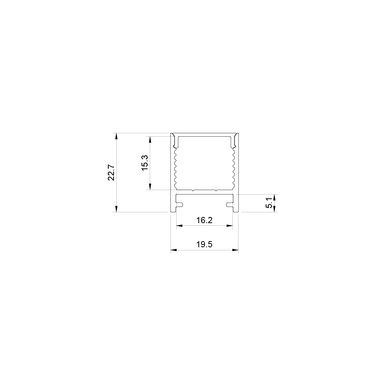

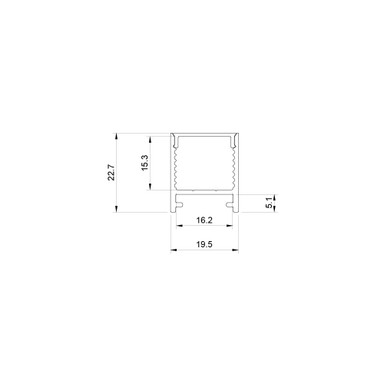

- Dimensions (overall WxH): 19.5mm x 22.7mm - Please refer to the dimension drawing for full dimension detail
- Max Tape Width: 16mm

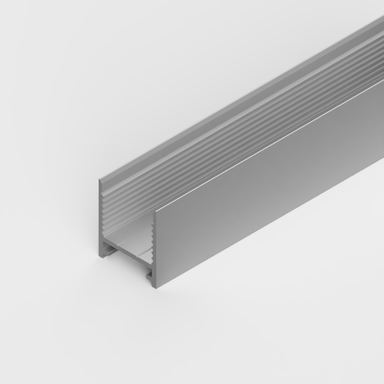

- Material: Aluminium LED Profile, Polycarbonate LED diffuser
- Water Resistance: IP20
Applications:

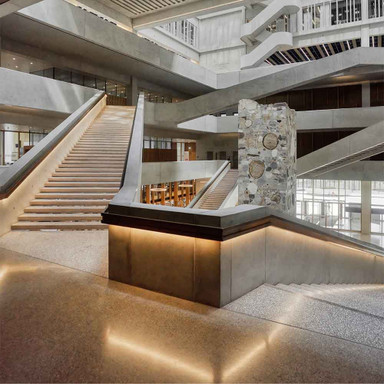

- Architectural Lighting: Highlighting recessed areas or specific architectural details in residential or commercial spaces.

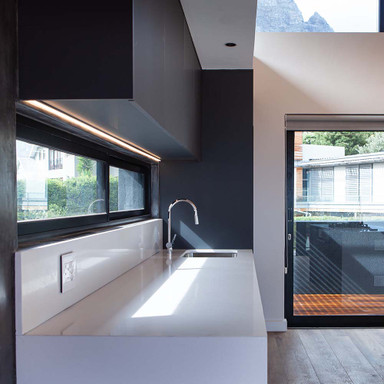

- Cabinet Lighting: Under-cabinet or inside cabinet lighting in kitchens or display cases, providing direct or ambient illumination.
- Retail Displays: Used in shops and boutiques to highlight products and create an attractive display.
Additional information:
- Suitable for IP65/67 tapes
- Anodised Anti-Corrosion Finish

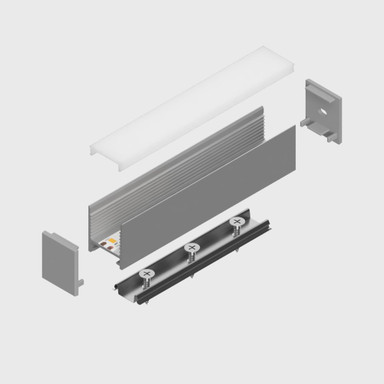

- End caps and mounting brackets sold separately in the 'Useful add ons' section above
- Available in silver & black
- Choice of 2 or 3 metre lengths

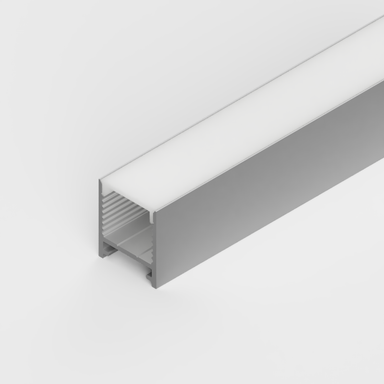

- Semi Clear Diffuser included
The 19.5mm x 22.7mm surface-mounted LED aluminium channel is versatile, providing a combination of aesthetic and practical benefits that can be applied across a range of residential, commercial, and industrial settings.
Hints and tips:
Diffusers
Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. With a semi-clear diffuser 70-75% of the brightness of the installed LED strip light will shine through.
As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.
As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.
Non-spotting finish
To achieve a highly desired non-spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. The more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.
Bespoke lengths available
UltraLEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.
Perfect for indoor use.
This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry and damp environments such as bathrooms, when installed using a suitably IP-rated LED strip light.
Product Specification
Installation Type | Surface Mounted |
Available Colours | Silver |
Available Lengths | 2 Metres,3 Metres |
Material | Anodised Aluminium, PC Diffuser |
IP Rating | IP20 Non Waterproof |
External Width | 19.5mm |
External Height | 22.7mm |
Max. LED Strip Width | 16mm (two 8mm wide LED strip lights) |
Internal Height | - |
Body Material | Anodised Aluminium, PC Diffuser |
Ingress Protection (IP) | 20 |
Mounting Type | Surface Mounted |
Max. Strip Width (mm) | 16 |
Items/Sets Per Pack | 1 |
Brand | Tagra |
Product Height (mm) | 23 |
Width (mm) | 19 |
Family Name | 2023 |
Warranty (Years) | 5 |
Beam Angle (°) | 100 |
