Syndeo by Tagra | Edge Angled | Joinery LED Light Bar | Cut Anywhere | 24V | IP20

Range Overview

The new Syndeo Light Bar range is a purpose-designed lighting solution for joinery, cabinetry, wardrobes, and furniture applications. With seven distinct light bar styles, the range allows designers and installers to select the correct beam angle, mounting method, and light direction for each application.

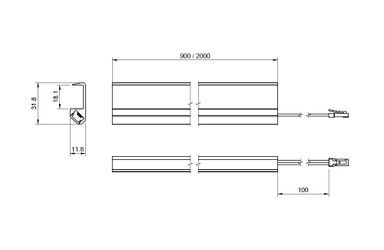

All Syndeo light bars are 24V, cut anywhere for exact sizing, and feature a 100mm pre-attached cable with Syndeo connector. This allows wiring to be completed in advance, using a Syndeo extension cable, with the light bar connected and mounted at the final stage for fast, clean installation. The range is compatible with a variety of Syndeo sensors, enabling automated and functional lighting solutions.

Designed specifically for joinery and furniture applications, the Syndeo Light Bar range combines flexibility, performance, and ease of installation.

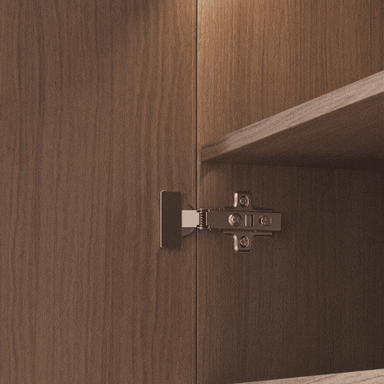

The light bars can be cut down if required. Simply peel back the LED strip and cut it to length with scissors, then trim the aluminium profile with a small saw.

Product Overview

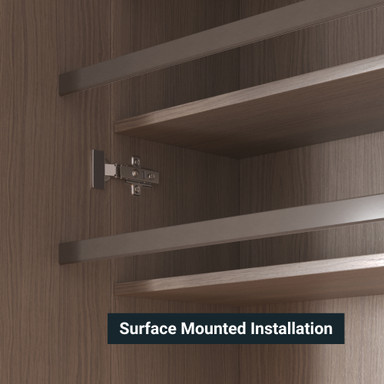

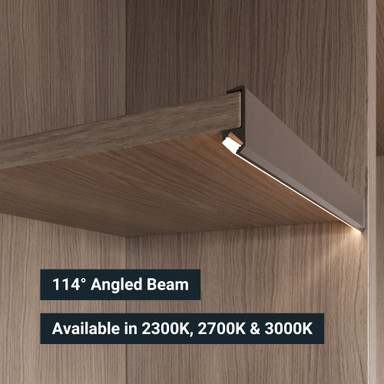

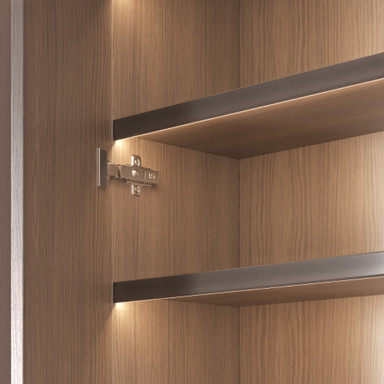

The Edge Angled light bar mounts at the front of wooden shelving and directs light back across shelf contents using an angled beam. This forward mounting position helps eliminate shadows and ensures items are evenly illuminated from the front edge, making it ideal for functional wardrobe and cabinet lighting. This profile offers ease of installation and clips directly onto the front of a wooden shelf.

Technical Specifications:

• Voltage: 24V
• IP Rating: IP20
• Body Colour: Iron Grey
• Available Colour Temperatures: 2300K / 2700K / 3000K
• Available Lengths: 0.9m, 2m
• Cut Anywhere: Yes
