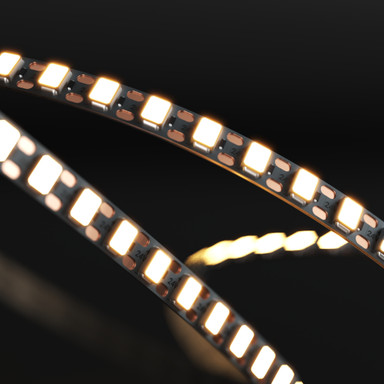

Syndeo by Tagra | Joinery LED Strip Light | 160 LEDs p/m | 5mm | 24V | IP20 | 9.6W/m | 5M Reels
PPS24-JP
From £50.40 Inc. VAT
Key Features

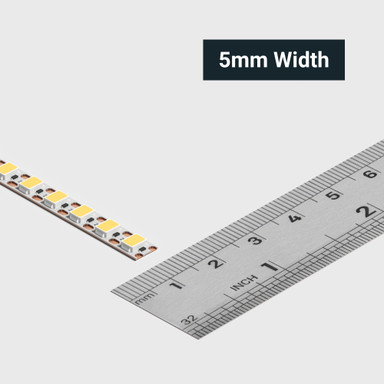

- Product Width: 5mm
- Lm/m (up to): 1396Lm/m
- Lm/W (up to): 145Lm/W
- CRI: 90+
- Lightsource SDCM: ≤3
- Run Length (Max): 5m
- Available Colours: 2300K, 2700K, 3000K, 4000K, 6000K
- Warranty: 5 Years
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75*
- Next Day DeliveryFrom £6.99
- Returns14 Day Policy
Product Overview
Introduction:
The Syndeo by Tagra Joinery Series Strip Light LED Strip Light is designed for discreet and professional lighting applications where installation space is limited. Featuring a slim 5mm width, this strip provides reliable and consistent illumination, making it ideal for cabinetry, shelving, furniture, display units, and detailed joinery projects.
Its compact design allows for seamless integration into narrow profiles and recessed spaces, delivering a clean and refined lighting finish for both residential and commercial interiors.
Part of the Syndeo Plug & Play range, it features tails at each end of the reel simplify installation and connectivity when used along side a Syndeo driver, sold seperately. With the plug and play functionality, you can quickly connect multiple lengths without the need for complex wiring or specialized tools.
Installation:
The LED strip light is suitable for indoor installations and includes a self-adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product’s lifespan.
Required Products:
The list of products below is required in order to operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Rated Life (Hours) | 50000 |
| Current Max. Rated (A) | 2 |
| Anti-Yellowing | No |
| Application Environment | Indoor |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 60 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 80 |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 20 |
| Chip Type | 2835 |
| Connector Type | Syndeo Male |
| Copper Foil Weight (oz) | 3 |

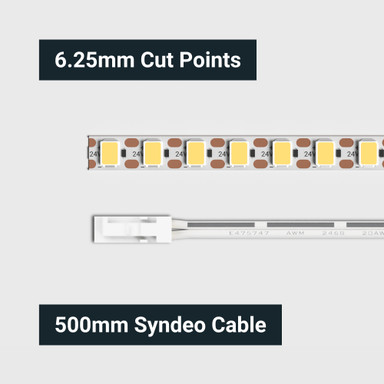

| Cut Points (mm) | 6.25 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 6.25 |
| LEDs Per Metre (LEDs/m) | 160 |
| Min. Bend Radius (mm) | 20 |
| PCB Type | Flexible |
| Product Height (mm) | 2 |
| Product Weight (g) | 105 |
| Width (mm) | 5 |
| Constant Voltage / Constant Current | CV |
| Bin Number | 1 |
| CCT (Kelvin) | 0 |
| CRI | 90 |
| SDCM | 3 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Self Adhesive (Brand & Model Number) | 3M-300lse |
| Brand | Tagra |
| Bend Direction | Vertical |
| Cable Sheath Material | PVC |
