Syndeo by Tagra | Joinery LED Strip Light | 420 LEDs p/m | 4mm | 24V | IP20 | 10W/m | 2.5M Reels
PPS24-JC
From £36.00 Inc. VAT
Key Features

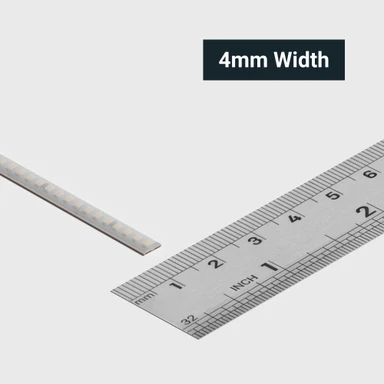

- Product Width: 4mm
- Lm/m (Up To): 935Lm/m
- Lm/W (Up To): 104Lm/W
- CRI: 90+
- Lightsource SDCM: ≤5

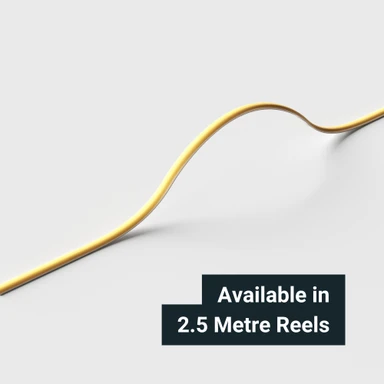

- Run Length (Max): 2.5m
- Available Colours: 2700K, 3000K, 4000K, 6500K
- Warranty: 7 Years
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75*
- Next Day DeliveryFrom £6.99
- Returns14 Day Policy
Product Overview
Introduction:

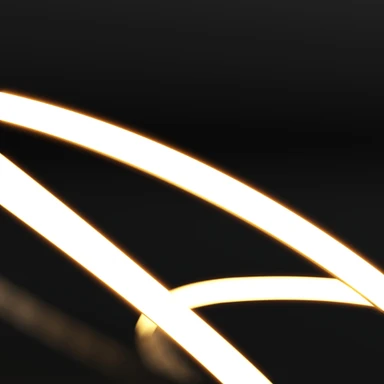

The Syndeo by Tagra Joinery Series LED Strip light is designed for discreet, high-quality illumination in compact spaces and detailed joinery applications. Featuring an ultra-slim 4mm width and COB technology for seamless, dot-free light output, it is ideal for cabinetry, shelving, furniture, display units, and architectural lighting where a clean, minimalist finish is required.
Part of the Syndeo Plug & Play range, it features tails at each end of the reel to simplify installation and connectivity when used along side a Syndeo driver (sold seperately). With the plug and play functionality, you can quickly connect multiple lengths without the need for complex wiring or specialised tools.
Installation:

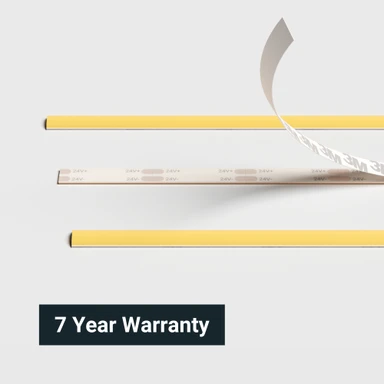

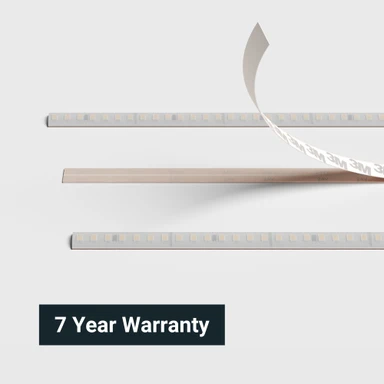

The LED strip light is suitable for indoor installations and includes a self-adhesive backing for easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product’s lifespan.
Required Products:
The list of products below is required in order to operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 7 |
| Control Signal - Input | DALI, 0-10, 1-10, TRIAC, DALI-2, Push dim, RF 2.4GHz, RF, PWM, Zigbee |
| Dimmable | Yes |
| Dimming Type | DALI, DALI-2, DALI-2,TRIAC, PWM, PUSH DIM, Non-Dimmable, 0-10, 0/1-10 |
| Energy Efficiency Class | F |
| Rated Life (Hours) | 60000 |
| Switch Cycles | 10000 |
| Current Max. Rated (A) | 0.4125 |
| Anti-Yellowing | No |
| Application Environment | Indoor |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 70 |
| Anti-Glare Shield | No |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 20 |
| Chip Type | CSP |
| Connector Type | Syndeo |
| Copper Foil Weight (oz) | 2 |

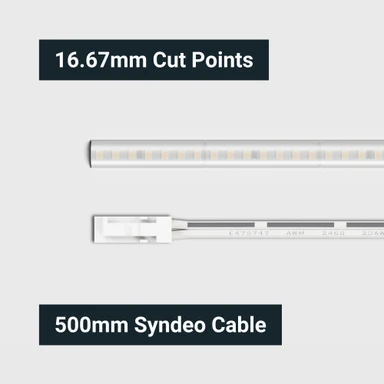

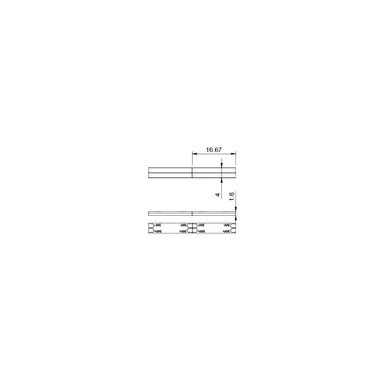

| Cut Points (mm) | 16.67 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 2.38 |

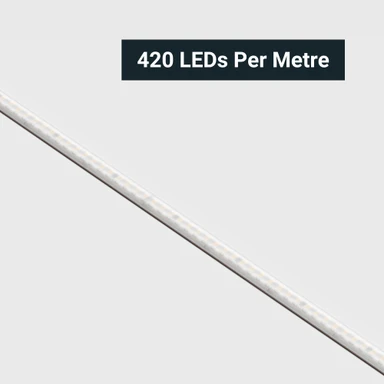

| LEDs Per Metre (LEDs/m) | 420 |
| Min. Bend Radius (mm) | 30 |
| PCB Type | Flexible |
| Product Height (mm) | 2 |
| Product Weight (g) | 0 |

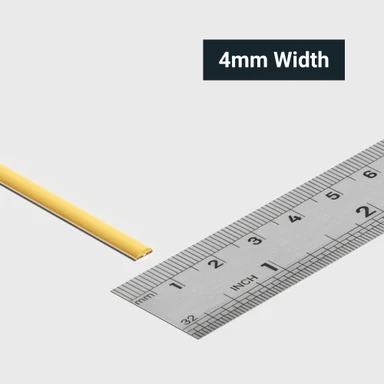

| Width (mm) | 4 |
| Constant Voltage / Constant Current | CV |
| CCT (Kelvin) | 0 |
| CRI | 90 |
| SDCM | 5 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Self Adhesive (Brand & Model Number) | 3M-55230H |
| Brand | Tagra |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | PVC |
