Syndeo by Tagra | 12V | 3 Way Splitter Socket | For LED Tape & Components
SYN-12V3WAYSPLIT
£4.34 Inc. VAT
Key Features
- Output voltage: 12 V
- IP Rating: 20
- Warranty: 3 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
Product Overview
Technical Specifications:
- Voltage: 12V
- Switching Capacity: 60 Watts
- Max Current Per Port: 3A
- Cable Length: 1000mm
- Cable Gauge: 2468 20 AWG
- Material: Plastic
- Colour: White
- Number of Ports: 3
- Guarantee: 3 Years
- Certification: RoHS, CE

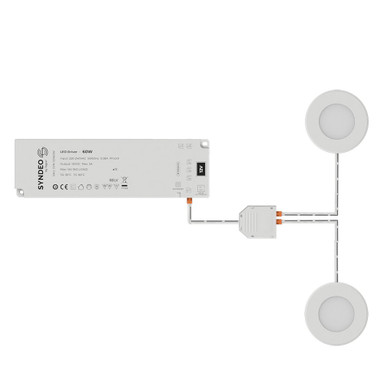

Designed to extend and add additional sockets for connections between LED tape, Spot Lights, Light Bars and the Syndeo driver. 1 metre cable length with an Orange male connector for a 12V connection and 3 connection sockets.
Can be used with any combination of Syndeo components such as lightbars, LED tape and Spot lights
*Please Note: Compatible with Syndeo Drivers and Components only and not Ready to Connect Components or Drivers.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Dimmable | No |
| Application Environment | Indoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 12-12V |
| Body Colour | White |
| Cable Length (m) | 1000 |
| Product Weight (g) | 30 |
| Constant Voltage / Constant Current | CV |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 12-12V |
| Battery Included | No |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Brand | Tagra |
| Rated Power (W) | 3 |
| Wattage (W) | 3 |
| Depth (mm) | 1000 |
| Product Height (mm) | 10 |
| Width (mm) | 33 |
| Dimensions LxWxH (mm) | 1000x33x10 |
| Warranty (Years) | 3 |
| Family Name | Syndeo Splitter |
| Cable Length (mm) | 1000 |
