Syndeo by Tagra | Short Range IR Cabinet/ Door | Wired LED Sensor | IP20

Lighting Control Made Simple

This cabinet/door sensor switch is perfect for installation into wardrobes, furniture cabinets and drawers with a detection angle of 20º it works by turning the lights on when it becomes unobstructed i.e. your door or drawer is opened.

Can with be recessed into a 12mm diameter hole with a depth of 50mm or surface mounted using the mounting bracket included in the package.

Designed to plug directly into the master control port of a 12V or 24V Plug and Play Syndeo Driver to control an entire lighting system. Comes equipped with a detachable cable for ease of install, fully plug and play and no need for soldering, saving you time and cost on your project.

*Please Note: Compatible with Syndeo Drivers and Components only and not Ready to Connect Components or Drivers.

All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Technical Overview:

• Voltage: 12V and 24V
• Standby Power: < 0.3W
• Sensor Range: 0-3000mm
• Material: Plastic
• Colour: Silver
• Cable Length: 2000mm
• IP Rating: IP20
• Installation: Recessed (12mm Cut Out) or Surface Mounted

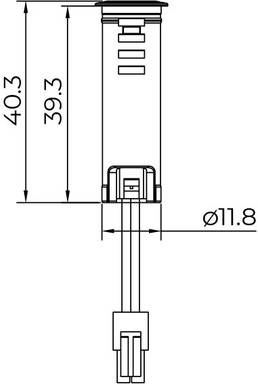

• Dimensions (mm): L 40.3 x W 11.8
• Guarantee: 3 Years
• Certification: RoHS, CE
