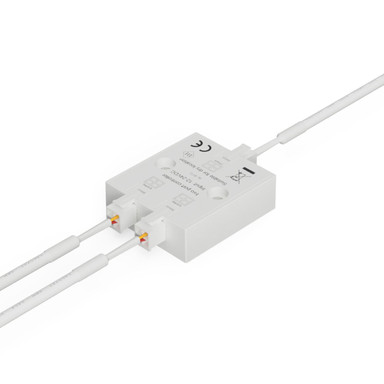

Syndeo by Tagra | 12-24V | 2 Port Sensor Splitter
SYN-SENSPLIT
£8.40 Inc. VAT
Key Features
- Output Voltage: 12 V
- IP Rating: 20
- Warranty: 3 Years
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £6.99
- Returns14 Day Policy
Product Overview
Technical Specifications:
- Voltage: 12V + 24V
- Switching Capacity: 72W
- Max Current Per Port: 3A
- Cable Length: 2000mm
- Cable Gauge: 2464 26 AWG
- Material: Plastic
- Colour: White
- Number of Ports: 2
- Mounting (included): Adhesive Tape and 2x (M4x20mm) Screws
- Guarantee: 3 Years
- Certification: RoHS, CE
Designed to allow two sensors to work independently as master controllers to control an entire lighting system, with built in soft start for a smooth lighting transition.
Simple to install with no soldering required, saving you time and cost in install. Compatible with the Syndeo Plug and Play system only.
*Please Note: Compatible with Syndeo Drivers and Components only and not Ready to Connect Components or Drivers.
Product Specification
| Dimmable | No |
| Application Environment | Indoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 12-12V |
| Body Colour | White |
| Cable Length (m) | 1000 |
| Product Weight (g) | 88 |
| Constant Voltage / Constant Current | CV |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 12-12V |
| Battery Included | No |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Brand | SYNDEO |
| Rated Power (W) | 72 |
| Wattage (W) | 72 |
| Warranty (Years) | 3 |
| Product Height (mm) | 14 |
| Depth (mm) | 225 |
| Width (mm) | 40 |

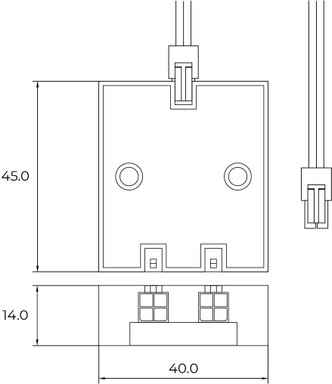

| Dimensions LxWxH (mm) | 45x40x14 |
| Family Name | Syndeo Splitter |
| Cable Length (mm) | 2000 |
| Items/Sets Per Pack | 1 |
| CCT (Kelvin) | 0 |
