Tagra | Signage LED Strip Light | Bendable | 60 LEDs p/m | 12V | IP20 | 7.2Wp/m | 5M Reel

SG12-MB5M

£54.00

From £37.80 Inc. VAT

Key Features

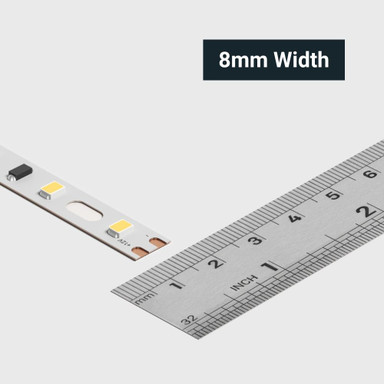

Product Width (mm): 8
Lm/m (up to): 835.2
Lm/W (up to): 116
CRI: 80+
Lightsource SDCM: ≤3
Run Length (Max): 5 m
Available Colours: 6500K
Warranty: 7 Years

DATA SHEET - SG12-MB5MPDF Download

SG12-MB65K5M Declaration Of ConformityDeclaration of Conformity

Select Colour Temperature

Select...

Total

£37.80 Inc. VAT

Pay by card, American Express, PayPal, Apple Pay or Google Pay

Delivery & Returns

Free UK DeliveryOrders over £75
Next Day DeliveryFrom £8.95
Returns14 Day Policy

Product Overview

Videos

Product Specification

Technical Documents

Customer Reviews

Product Overview

Specifications:

Voltage: 12V
Max. Power: 7.2W/m
LEDs per metre: 60 LEDs
Cut Points: 50mm
CRI: >80
Beam Angle: 120°
SDCM: <3
PCB Weight: 2oz
Lumens: Up to 838lm/m
Warranty: 7 Years
1BIN Guarantee

Information:

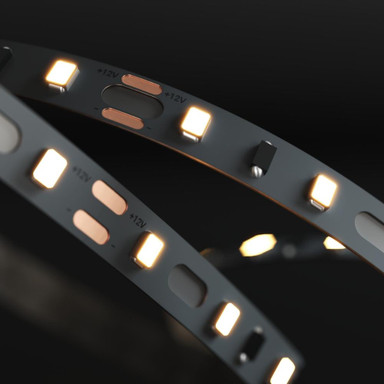

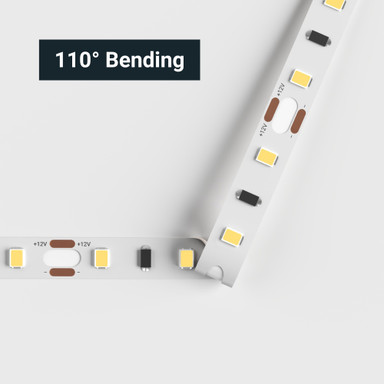

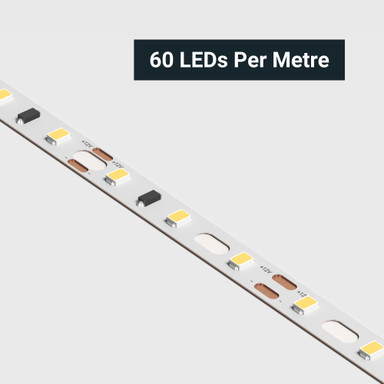

Perfect for lettering and large signage displays, our bendable 12V LED strip light can be manipulated to fit into large lettering and lightboxes. LED density of 60 LEDs per metre allows for room along the strip light to bend in multiple directions. Described as module shape, this LED strip light can be bent in both left and right directions to help you apply to your installation. It produces a 120° beam angle and up to 1500lm per metre making it an ideal solution for large signage and lettering.

Part of the Professional Signage range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

This product benefits from our 1-BIN guarantee. This guarantee provides reassurance that all the LED chips have come from the same manufacturing bin, ensuring no colour variation across batches.

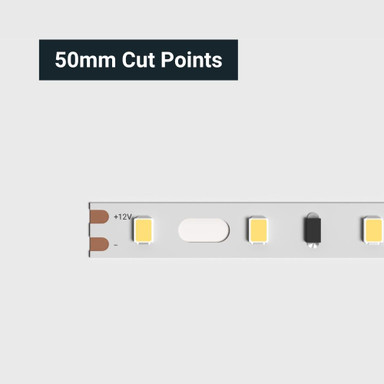

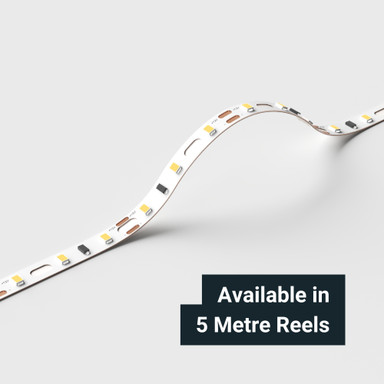

Available in white light colour cool white 6500K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 50mm intervals.

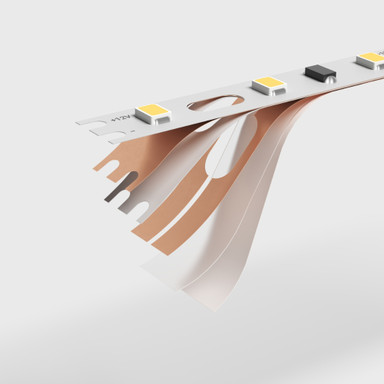

Our Professional Signage LED Strip Light is manufactured using high quality materials and components. This product features slot shaped cut outs in the PCB that allow you to manipulate the strip light in different directions. Its ideal for signage installations and offers a bright and flexible solution.

Installation:

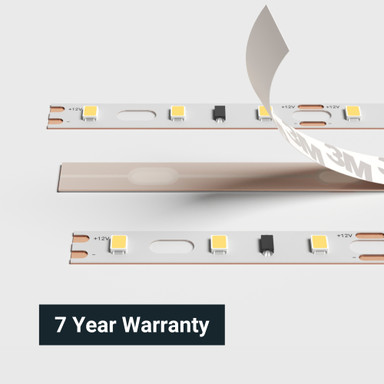

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

12V LED Driver

Videos

Product Specification

Colour	6500K
Voltage	12V
Amps per Metre	0.6 Amps p/m
Watts Per Metre	7.2 Watts p/m
Cut Points	50mm
CRI	80
SDCM	3
Lumens Per Metre	Up to 838lm/m
LEDs Per Metre	60
Tape Width	8mm
Water Resistance	IP20
Min Operating Temperature	-25°C
Max. Operating Temperature	40°C
Energy Rating	D
Warranty	7 Years
Warranty (Years)	7
Dimmable	Yes
Energy Efficiency Class	D
Max. Run Length (m)	5
Ingress Protection (IP)	20
Interior or Exterior Use	INTERIOR
Input Current Type (A)	DC
Input Voltage Min. - Max (V)	12-12V
Cable Length (m)	500
Copper Foil Weight (oz)	2
Cut Points (mm)	50
LEDs Per Metre (LEDs/m)	60
Product Height (mm)	2
Depth (mm)	5000
Width (mm)	8
Beam Angle (°)	120
Operating Temperature Min. - Max. (°C)	-25℃ to 40℃
Dimensions LxWxH (mm)	5000x8x2
Brand	Tagra
Body Colour	White
Family Name	Signage
Bend Direction	Vertical
Bin Number	1
Cable Length (mm)	500
