Products Tested In-House

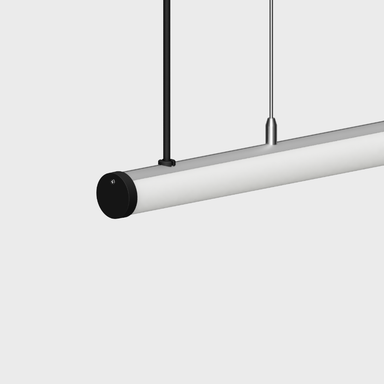

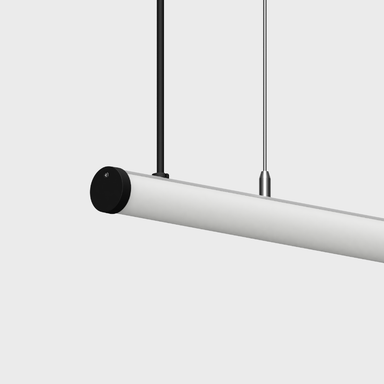

Tagra | LED Linear Luminaire | 300° | 30mm Circular | Suspendable | 24V | IP20 | 0.5-3M
3030TL
From £96.00 Inc. VAT
Key Features
- Input voltage (max): 24 V
- Available beam angles: 300 °
- Mounting type: Suspended
- Body colour: Silver
- Colour Type: Single colour
- Available Colours: 3000K, 4000K, 6000K
- Available Lengths: 500; 100; 1500; 2000; 2500; 3000
- Ingress protection (IP): 20
- Warranty: 3 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 22.0W/m
- LEDs per metre: 280 LEDs
- Colours: 3000K, 4000K, 6000K
- Lengths: Up to 3000mm
- Water Resistance: IP20
- Cable Length: 3000mm
- Beam Angle: 300°
- Size: 30mm Diameter
- Lumens: Up to 2700lm/m
- Warranty: 3 Years
Information:
Perfect for horizontal suspended illumination, our 30mm Circular LED Linear Luminaire is available in a range of lengths from 500mm to 3000mm making it suitable for a wide range of installations. Choose from Warm White 3000K, Neutral White 4000K or Cool White 6000K, producing a >80 CRI light output and up to 2700 lumens per metre.
Featuring a high LED density of 280 LEDs per metre creating a spot-free continuous light and 300° beam angle. Comes with a pre-attached 3 metre cable and suspension kits included. Sleek black end caps, anodized aluminium profile, high quality diffuser all make our finished product luminaires perfect for all professional installations.
This product is made to order and has a maximum 4 week lead time from the date of purchase.
Our range of LED Linear Luminaires are manufactured using high quality materials and components. Made in the UK by our team of technical production experts, they pass product testing before being shipped to the customer. These products are the ideal decorative lighting solution for a range of applications including offices, hospitality, exhibitions, retail and lots more.
Installation:
Available in IP20 making it suitable for indoor installation. All our LED Linear Luminaires come with suspension kits included and feature a 3 metre cable pre-attached. We recommend these products are installed by a qualified person or electrician in accordance with local regulations.
Required Products:
The list of products below are required in order to properly operate this product:
- 24V LED Driver
Something to note:
- Luminaires are non-refundable due to the custom nature of the product.
Product Specification
| Warranty (Years) | 3 |
| Ingress Protection (IP) | 20 |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Light Colour | warm white,natural white,cool white |
| Brand | Tagra |
| Dimmable | Yes |
| Dimming Type | RF |
| Rated Life (Hours) | 10 |
| Storage Humidity Max. (°C) | 50 |
| Working Humidity Max. (°C) | 50 |
| Chip Type | SMD320 |
| LED Module Replaceable | true |
| Product Weight (g) | 130 |
| Width (mm) | 30 |
| Constant Voltage / Constant Current | CV |
| Fixings Included | Yes |
| Power Cord Included | Yes |
| Beam Angle (°) | 300 |
| Bin Number | 1 |
| CCT (Kelvin) | 3000 |
| CRI | 5 |
| Total Lumens (Lm) | 1200 |
| Lumens Per Watt (Lm/W) | 100 |
| SDCM | 1 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | 10℃ to 0℃ |
| Certification | EMC - 2014/30/EU |
| LEDs Per Metre (LEDs/m) | 280 |
| Family Name | 3030TL |
| Body Colour | Silver |
| Mounting Type | Suspended |
| Product Height (mm) | 30 |
Technical Documents
