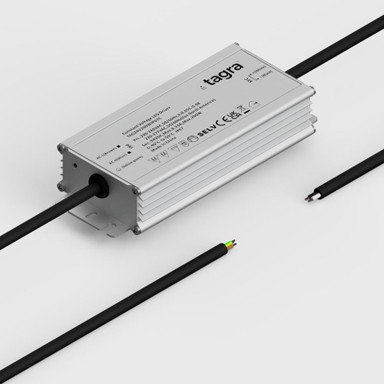

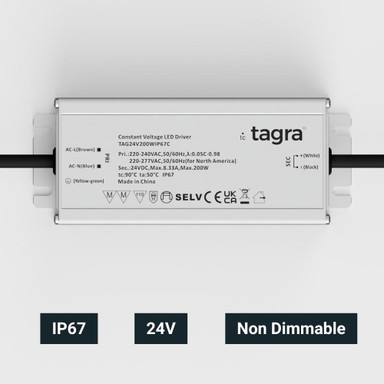

Tagra | 24V | Constant Voltage | Non-Dimmable LED Driver | IP67
TAG24VIP67
From £72.00 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- Constant Voltage / Constant Current: Constant Voltage (CV)
- Available Wattages: 320W
- Input Voltage (Min/Max): 220V–240V
- Output Voltage (Min/Max): 24V
- Max Output Current Per Channel: 13.3A
- Ingress Protection (IP): 67
- Body Material: Metal
- Warranty: 5 Years
- Key Features Spec: Compact design ideal for space-restricted installations
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £4.99
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 220–240V AC
- Output Voltage: 24V
- Rated Power: 320W
- Efficiency: Up to 95%
- Operating Temperature: -40°C to +60°C
- IP Rating: IP67
- Material: Aluminium
- Mounting: Surface Mounted
- Protection: Short Circuit / Overload / Over-Voltage / Over-Temperature
- Warranty: 5 Years
Information
The Upgraded Tagra 24V IP67 Power Supply range is designed for high-performance LED installations where reliability is critical and installation space is limited. Now housed in a newly updated compact design, approximately 26% smaller than the previous version, and featuring fully sealed IP67 construction, it delivers powerful output in a durable, space-efficient form.
Operating at 24V ensures excellent compatibility across a wide range of LED strips and lighting systems, making it a versatile solution for both new installations and retrofit projects. It provides stable, consistent voltage output to maintain uniform illumination across connected fittings.
Ideal for architectural façade lighting, garden installations, signage projects and general commercial outdoor applications, the range offers dependable, high-efficiency performance in demanding environments.
Suitable for both indoor and outdoor use, these drivers feature active PFC, ultra-high power factor and efficiency of up to 95%, helping to reduce energy loss and minimise heat build-up. A fanless design ensures silent operation and long-term reliability.
Backed by a 5-year warranty, the Tagra 24V IP67 range provides a robust, professional-grade 24V power solution for a wide variety of LED lighting applications.
Product Features
Crafted to deliver consistent and long-lasting performance, the Tagra 24V IP67 Power Supply supports installation in tight enclosures:
- Compact design ideal for space-restricted installations
- IP67 waterproof construction for indoor and outdoor use
- Full protection suite with automatic fault recovery
- Durable aluminium housing with internal sealing
Installation
Available in IP67 making it suitable for damp environments and designed to be connected to a mains power supply (220-240V AC). This Power Supply can be mounted to a surface using the fixing points located on the product casing. We recommend this product be installed by a qualified electrician.
Product Specification
| Adjustable PWM | No |
| Warranty (Years) | 5 |
| Dimmable | No |
| Rated Life (Hours) | 50000 |
| Power Factor (A) | 0.97 |
| Body Material | Metal |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Exterior |
| Mounting Type | Surface Mounted |
| Storage Humidity Max. (°C) | 85 |
| Working Humidity Max. (°C) | 85 |
| Input Cable Length (mm) | 235 |
| Input Control Connection Type | Bare end |
| Input Current Type (A) | AC |
| Input Frequency Min. - Max. (Hz) | 50-60Hz |
| Input Voltage Min. - Max (V) | 220-240V |
| Body Colour | Silver |
| DIN Rail Compatible | No |
| Product Weight (g) | 500 |
| Constant Voltage / Constant Current | CV |
| Load Min. (W) | 0 |
| Max. Output Current Per Channel (A) | 4.17 |
| Output Current Max. (A) | 4.17 |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 24-24V |
| Power Cord Included | No |
| Electrical Safety Class | I |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Operating Temperature Min. - Max. (°C) | -40℃ to 70℃ |
| Brand | Tagra |
| Wattage (W) | 100 |
