Tagra | Double Row LED Strip Light | 280 LEDs p/m | 24V | IP20 | 20Wp/m | 5M Reel
DR24-5M
From £102.00 Inc. VAT
Key Features
- Up to 2700 Lumens Per Metre
- IP20
- 20mm Width
- 7 Year Warranty
- 50mm Cut Points
- Available in 3000K, 4000K and 6000K
- Double Row
For LDT files, please sign in
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 20W/m
- LEDs per metre: 280 LEDs
- Cut Points: 50mm
- CRI: >80
- Beam Angle: 120°
- SDCM: <3
- PCB Weight: 3oz
- Lumens: Up to 2700lm/m
- Warranty: 7 Years
Information:

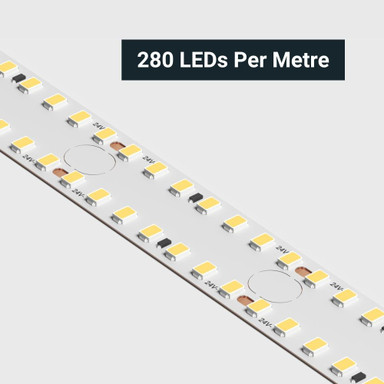

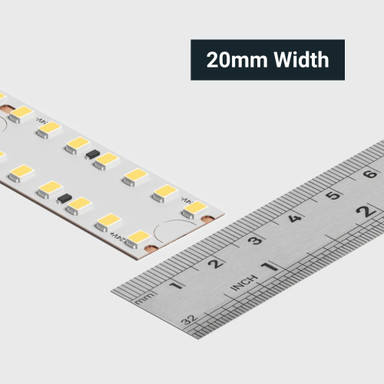

Perfect for use in wide and deep LED profiles where more than one row of LEDs may be required. High LED density of 280 LEDs per metre, 14 LEDs per unit and a width of 20mm makes this product ideal for use in luminaires and LED profiles. The LED density will produce a spot-free continuous light in most of our LED profiles. A 120° beam angle and up to 2700lm per metre make it a perfect solution for most professional installations.
Part of the Professional range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

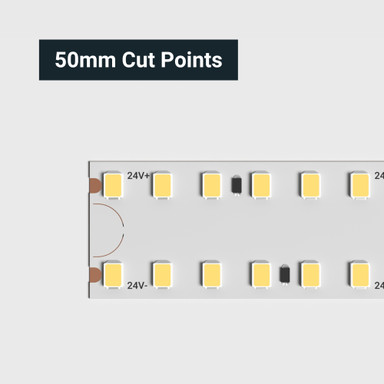

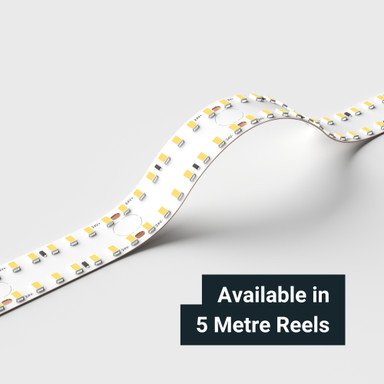

Available in a range of white light colours including 3000K, 4000K and 6000K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 50mm intervals.

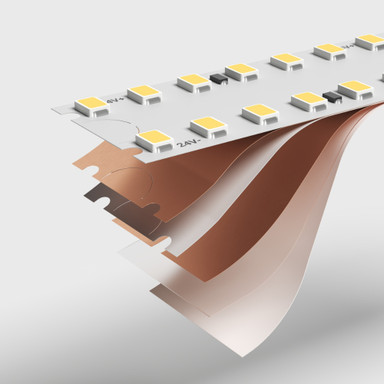

Our Professional Double Row LED Strip Light is manufactured using high quality materials and components. Its flexibility and high brightness make it ideal for a range of installations.
Installation:

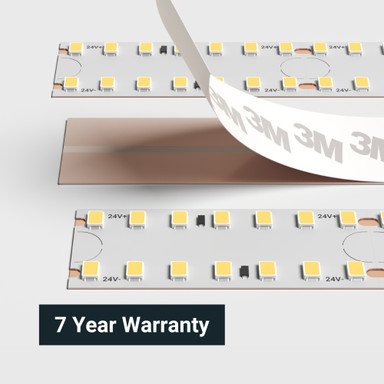

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.
We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.
Required Products:
The list of products below are required in order to properly operate this product:
- 24V LED Driver
Product Specification
Colour | 3000K, 4000K, 6000K |
Voltage | 24V |
Amps per Metre | 0.85 Amps p/m |
Watts Per Metre | 20 Watts p/m |
Cut Points | 50mm |
CRI | 80 |
SDCM | 2 |
Lumens Per Metre | Up to 2700lm/m |
LEDs Per Metre | 280 |
Tape Width | 20mm |
Water Resistance | IP20 |
Min Operating Temperature | -25°C |
Max. Operating Temperature | 40°C |
Energy Rating | - |
Warranty | 7 Years |
Warranty (Years) | 7 |
Dimmable | Yes |
Energy Efficiency Class | - |
Max. Run Length (m) | 5 |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | INTERIOR |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 24-24V |
Cable Length (m) | 500 |
Copper Foil Weight (oz) | 3 |
Cut Points (mm) | 50 |
LEDs Per Metre (LEDs/m) | 280 |
Product Height (mm) | 2 |
Depth (mm) | 5000 |
Width (mm) | 20 |
Beam Angle (°) | 120 |
Lumens Per Watt (Lm/W) | 0 |
Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |

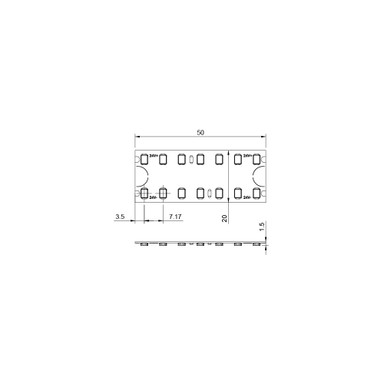

Dimensions LxWxH (mm) | 5000x20x2 |
Brand | Tagra |
Body Colour | White |
Family Name | Double Row |
Bend Direction | Vertical |
Lumens Per Metre (Lm/m) | 0 |
Bin Number | 1 |
Cable Length (mm) | 500 |
